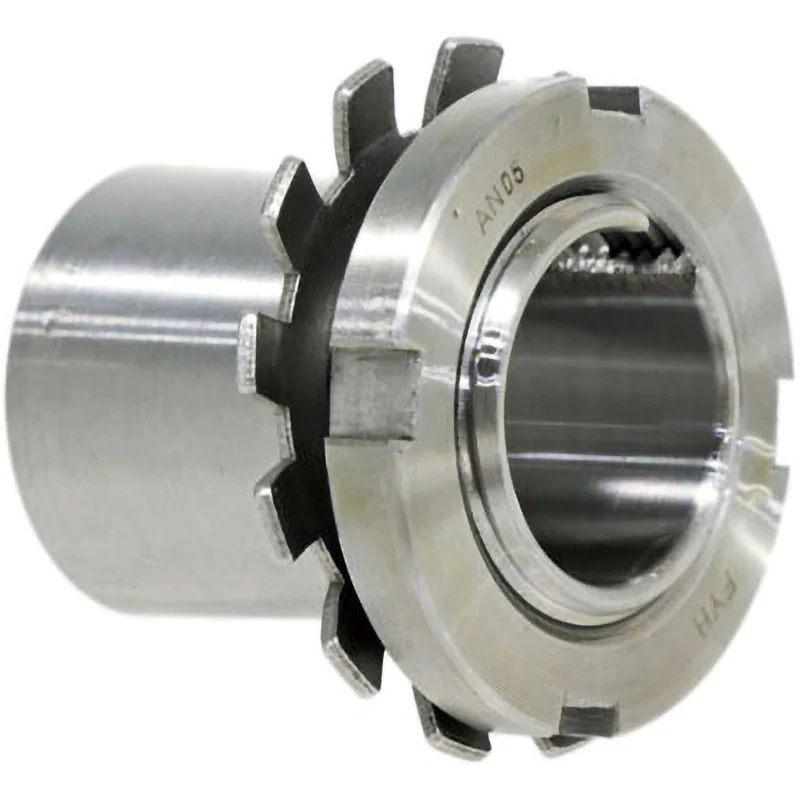

Description
Dimension B1(mm): 35;
Dimension B2(mm): 8;
Dimension d2(mm): 38;
Bore diameter of the shaft hole d1 (mm): 20;
Purpose: To fix the shaft;
Type: Adapter;
Type: H;
Suitable for: Sleeve A2305X;
Compliant with RoHS Directive (corresponding to 10 substances);
Suitable for: bearings UK205, UKP205, UKF205;
The nut to be used: AN05;
The washer to be used: AW05X
