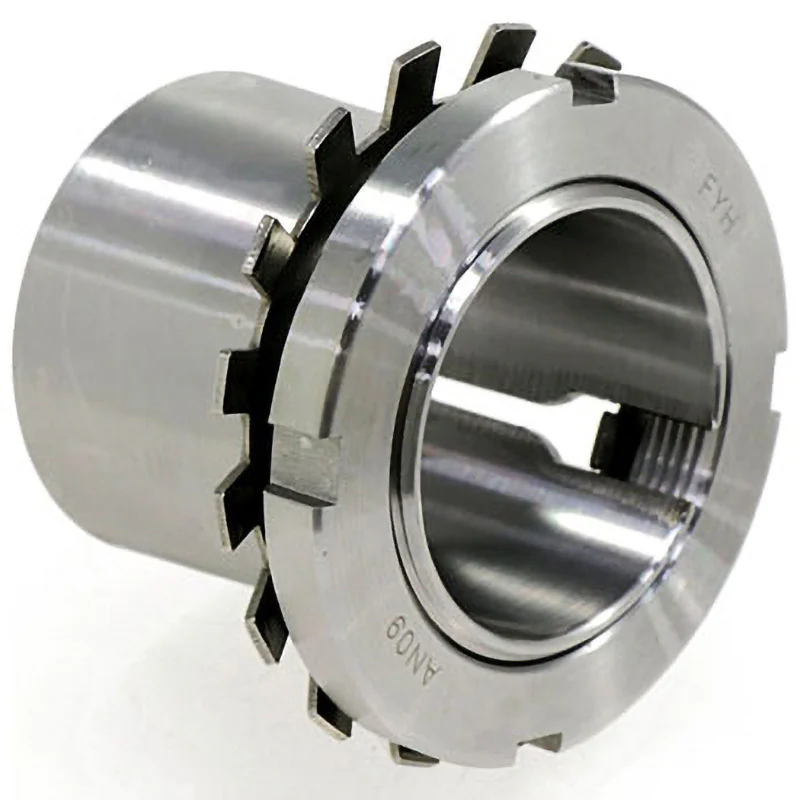

Description
Dimension B1(mm): 50;
Dimension B2(mm): 11;
Dimension d2(mm): 65;
Bore diameter of the shaft hole d1 (mm): 40;
Purpose: To fix the shaft;
Type: Adapter;
Type: H;
Suitable for: Sleeve A2309X;
Compliant with RoHS Directive (corresponding to 10 substances);
Suitable for: bearings UK209, UKP209, UKF209;
The nut to be used: AN09;
The washer to be used: AW09X
