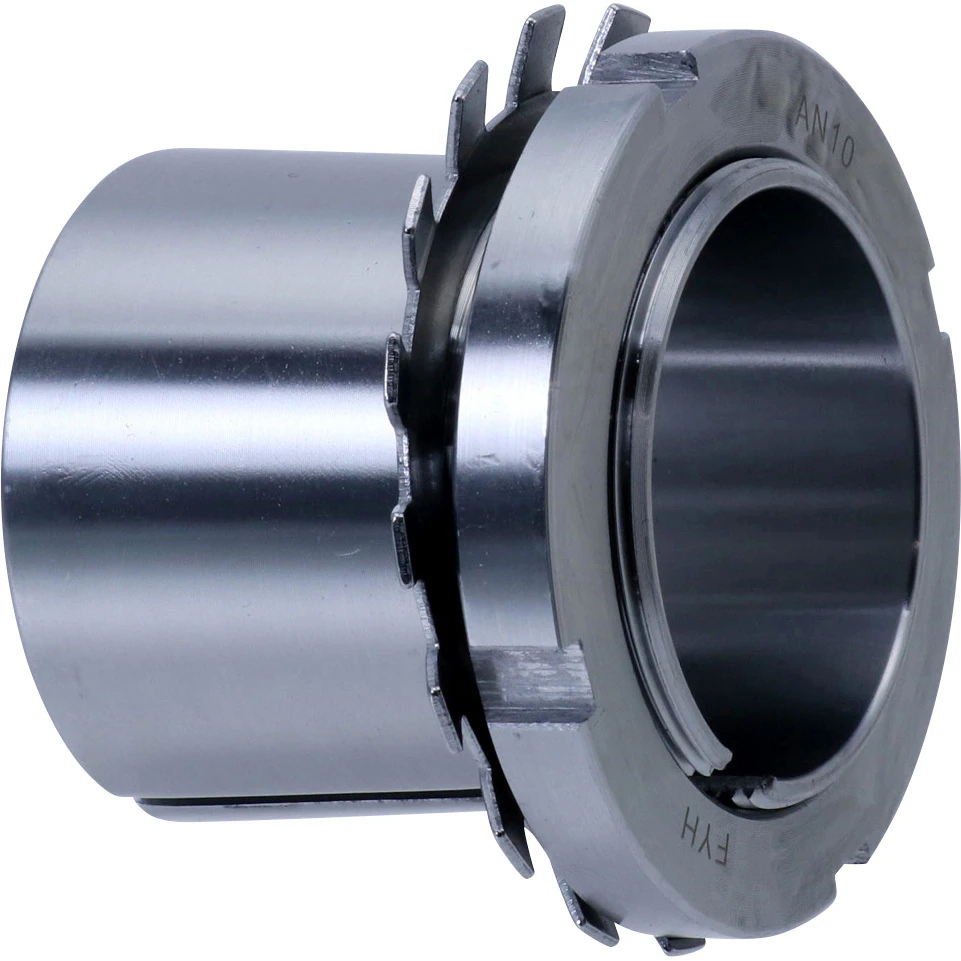

Description
Dimension B1(mm): 55;
Dimension B2(mm): 12;
Dimension d2(mm): 70;
Bore diameter of the shaft hole d1 (mm): 45;
Purpose: To fix the shaft;
Type: Adapter;
Type: H;
Suitable for: Sleeve A2310X;
Compliant with RoHS Directive (corresponding to 10 substances);
Suitable for: bearings UK210, UKP210, UKF210;
The nut to be used: AN10;
The washer to be used: AW10X
