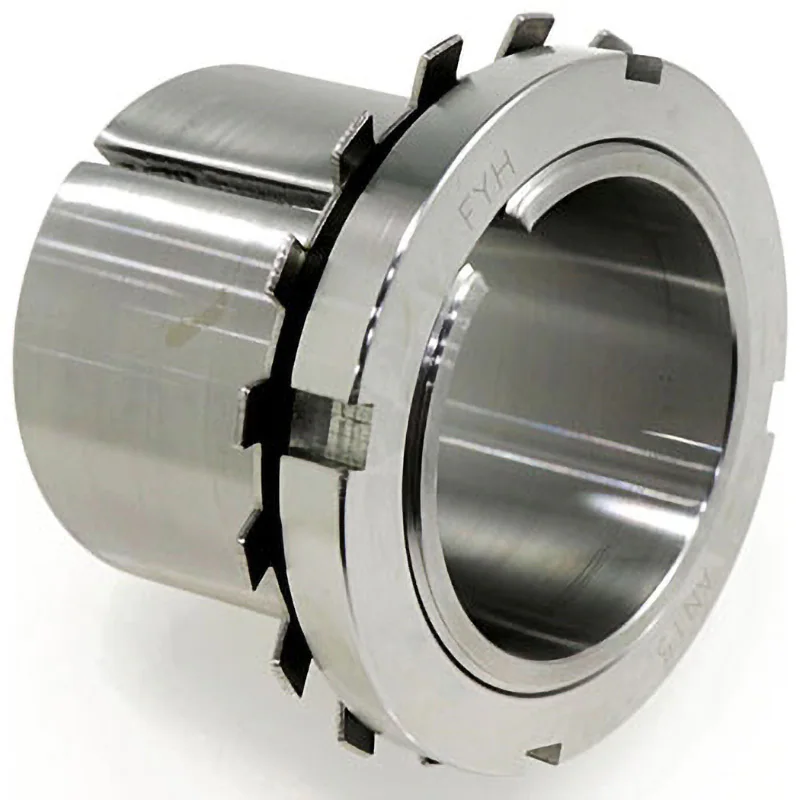

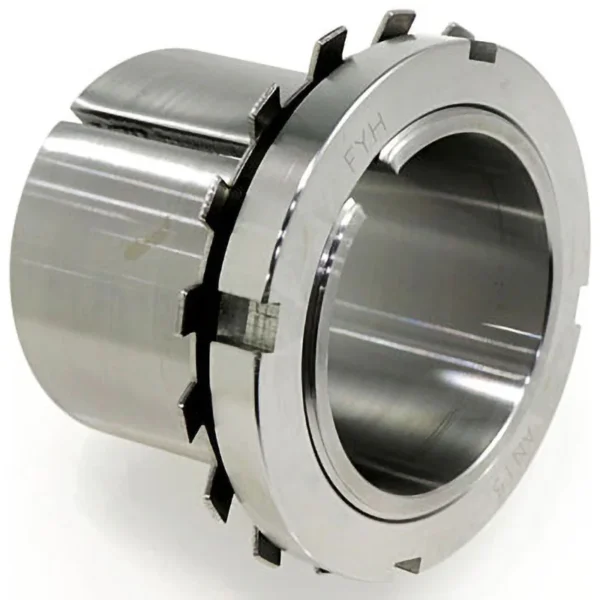

Description
Dimension B1(mm): 73;
Dimension B2(mm): 15;
Dimension d2(mm): 98;
Bore diameter of the shaft hole d1 (mm): 65;
Purpose: To fix the shaft;
Type: Adapter;
Type: H;
Suitable for: Sleeve A2315X;
Compliant with RoHS Directive (corresponding to 10 substances);
Suitable for: bearings UK215, UKP215, UKF215;
The nut to be used: AN15;
The washer to be used: AW15X
