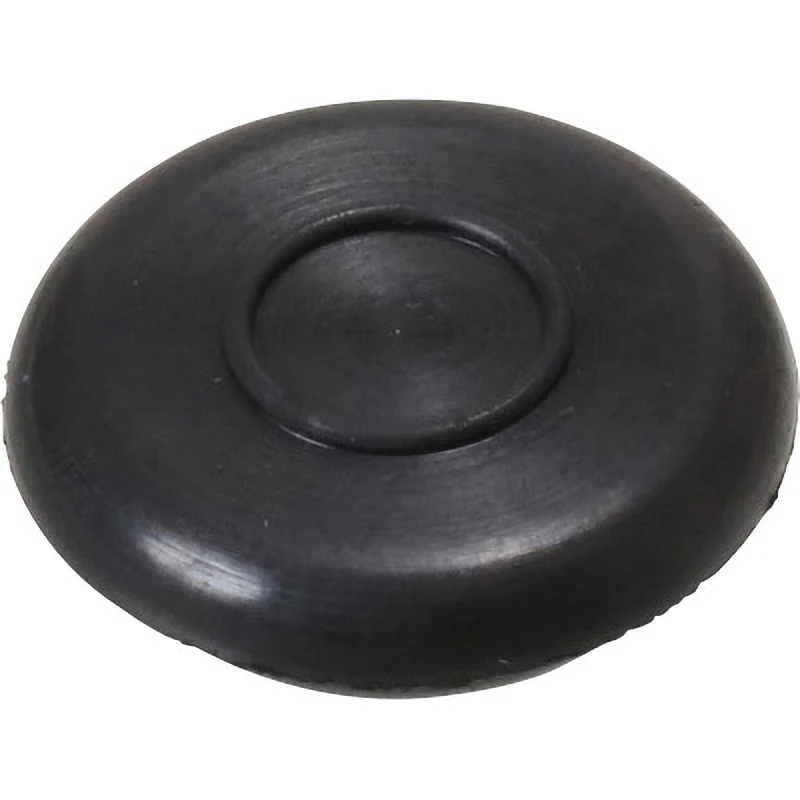

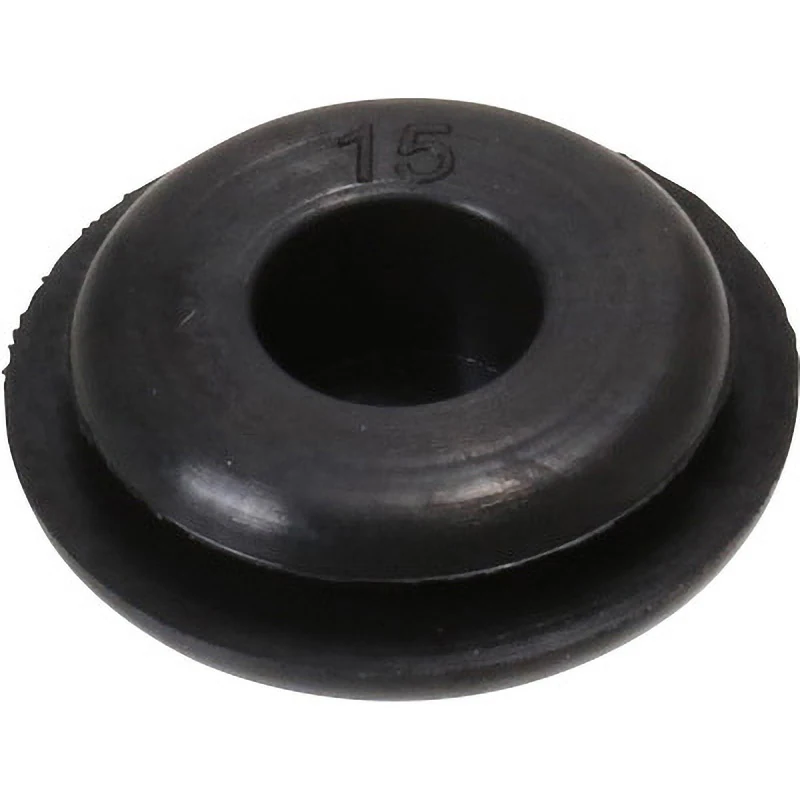

Atom Film-Backed Grommet > MMG-15×5

Description

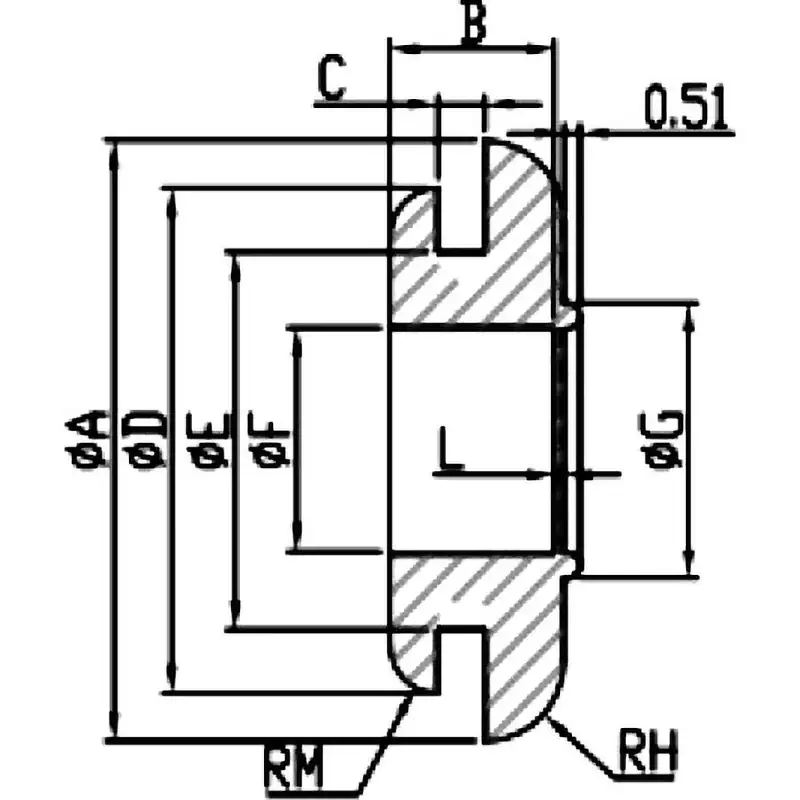

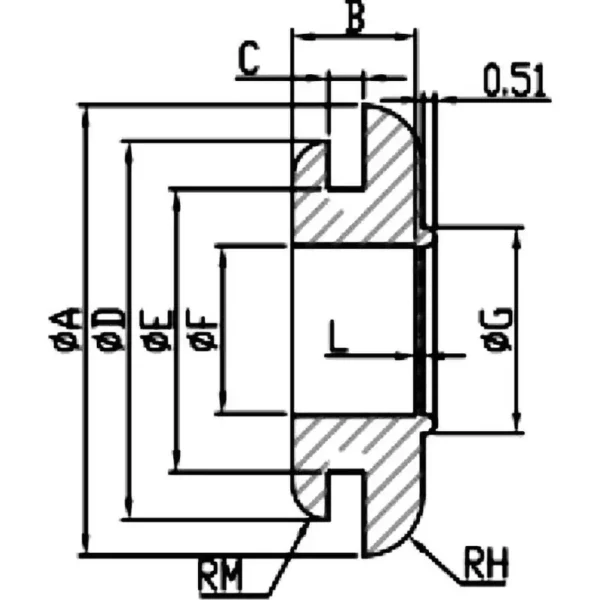

Dimensions A (mm): 19
Dimensions D (mm): 16
Dimensions E (mm): 12
Dimensions F (mm): 7
Dimensions B (mm): 5.1
Dimensions C (mm): 1.6
Dimensions G (mm): 8.7
Usage for wiring protection of distlipution boards, sub-distlipution boards, control panels, measuring instruments, etc.
Material EPDM
Color Black
Operating temperature range (Celsius degrees) up to 70
Dimensions L (mm): 0.45
Dimensions H (mm): 2.5
Hardness 55
Dimensions M (mm): 1.5
Dimensions I (mm): 1.5
Dimensions J (mm): 2.5
Dimensions K (mm): 6.3
You can pass cables through by breaking the film. Effective for hole filling and dust prevention.
