Atom Film-Backed Grommet > MMG-7×5

Description

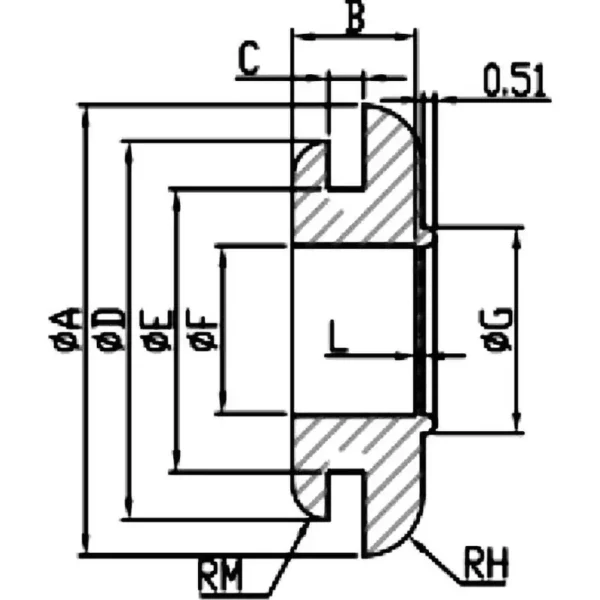

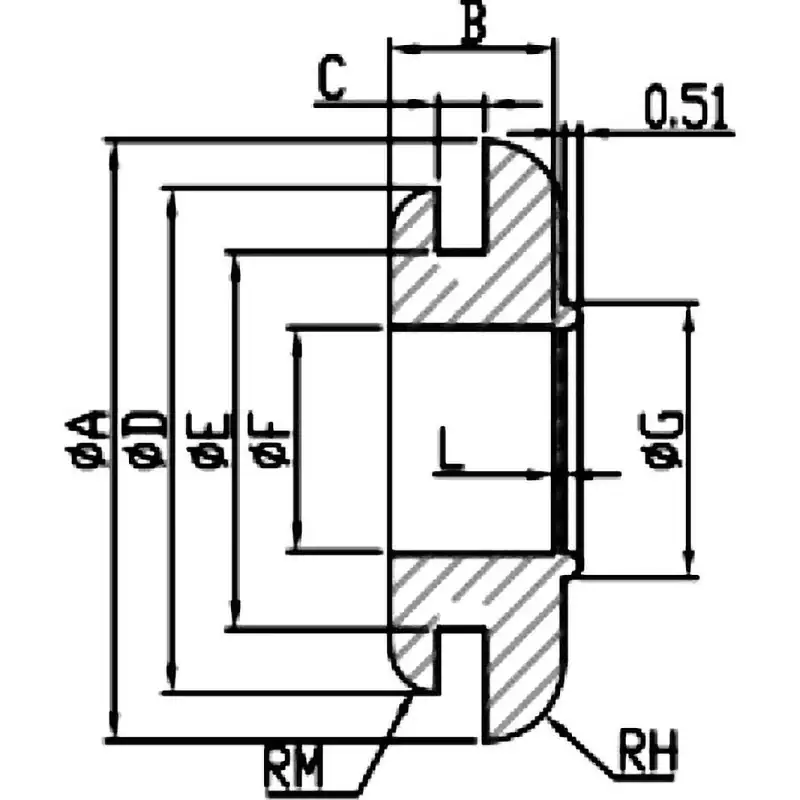

Dimension A (mm): 37
Dimension D (mm): 33
Dimension E (mm): 28
Dimension F (mm): 21
Dimension B (mm): 9.5
Dimension C (mm): 2.3
Dimension G (mm): 24.8
Used for wiring protection in distlipution boards, control panels, measuring instruments, etc.
Material: EPDM
Color: Black
Operating temperature range (Celsius degrees) up to 70
Dimension L (mm): 0.8
Dimension H (mm): 3.5
Hardness 55
Dimension M (mm): 1

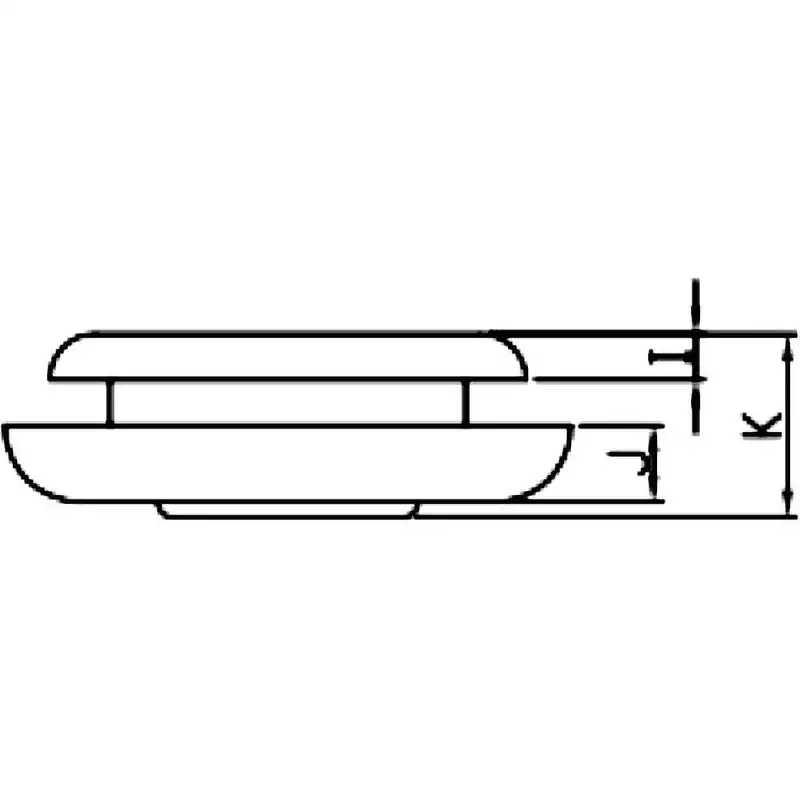

Dimension I (mm): 3
Dimension J (mm): 5
Dimension K (mm): 11.8
You can pass cables through by breaking the film. It is effective for hole filling and dust prevention.
