Description

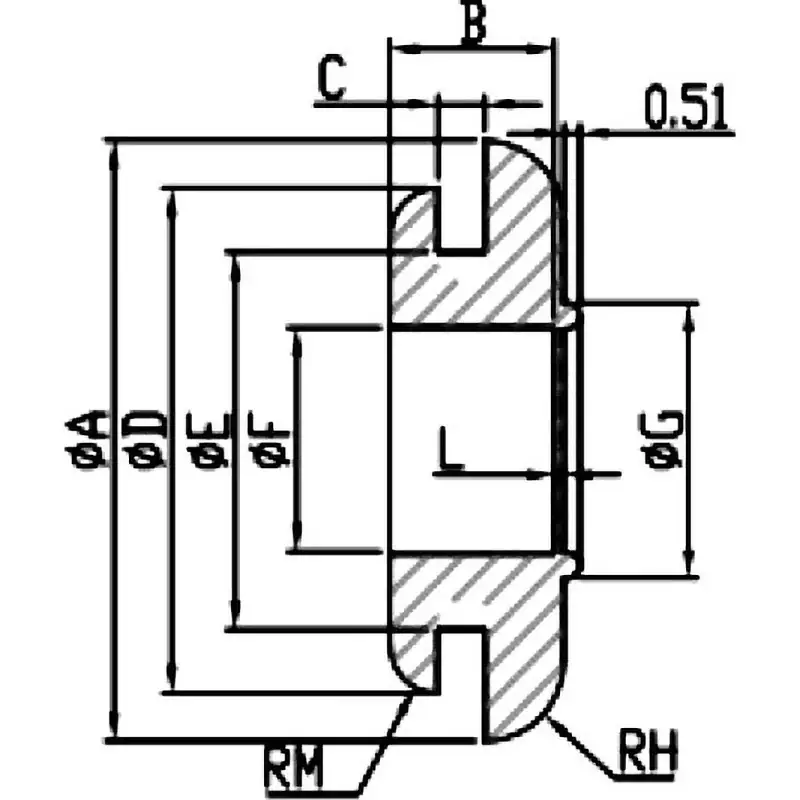

Dimension A (mm): 23
Dimension D (mm): 20
Dimension E (mm): 16
Dimension F (mm): 11
Dimension B (mm): 6.45
Dimension C (mm): 1.6
Dimension G (mm): 12.9
Used for wiring protection in distlipution boards, control panels, measuring instruments, etc.
Material: EPDM
Color: Black
Operating temperature range (Celsius degrees) up to 70
Dimension L (mm): 0.65
Dimension H (mm): 3.5
Hardness 55
Dimension M (mm): 1
Dimension I (mm): 2
Dimension J (mm): 3.5
Dimension K (mm): 8.1
You can pass cables through by breaking the membrane. Effective for hole filling and dust prevention.
