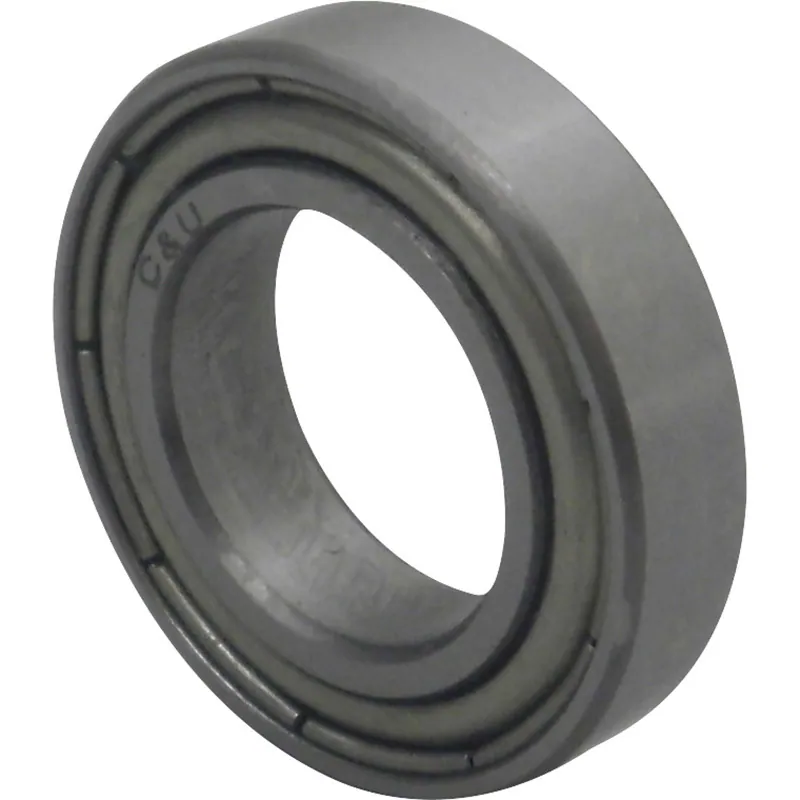

CCTY Bearing Japan Deep Groove Ball Bearing Series 6200 ZZ > –

Description

Width Bmm) 23;
Outer diameter D (mm) 120;
Inner diameter d (mm) 65;
Chamfer dimension rmm) 1.5;
Shield shape: Shield shape with steel plates on both sides;
Raceway ring shape: Deep groove ball bearing;
Outer ring type: Flat;
Number of raceway ring rows: Single row;
Mass (kg) 0.990;
Material (main body): High-carbon chromium bearing steel;
Allowable rotational speed (/min [r.p.m]): Grease lubrication 5400;
Basic dynamic load rating Cr (N) 57200;
Basic static load rating Cor (N) 40100;
JIS grade: 0;
Load direction: Radial;
Rolling element material: High-carbon chromium bearing steel;
Bearing series: 6200
