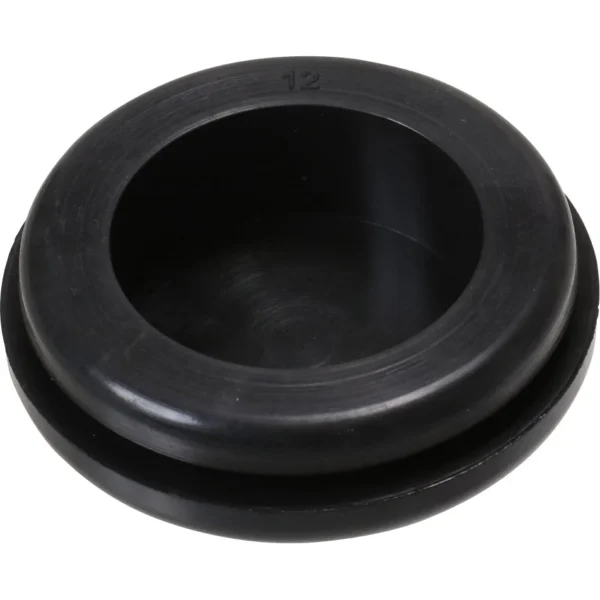

MMG-12×5 Grommet with Film

Description

Dimensions A (mm) 45; Dimension D (mm) 42; Dimension E (mm) 36; Dimension F (mm) 28; Dimension B (mm) 11.6; Dimension C (mm) 2.3; Dimension G (mm) 31.7; Suitable for wiring protection in distribution boards, control panels, measuring instruments, etc.; Material EPDM; Color Black; Operating temperature range (Celsius degrees) up to 70; Dimension L (mm) 0.7; Dimension H (mm) 4; Hardness 55; Dimension M (mm) 2.25; Dimension I (mm) 4; Dimension J (mm) 6; Dimension K (mm) 13.8; Can pass cables by breaking the film. Effective for hole filling and dust prevention.
