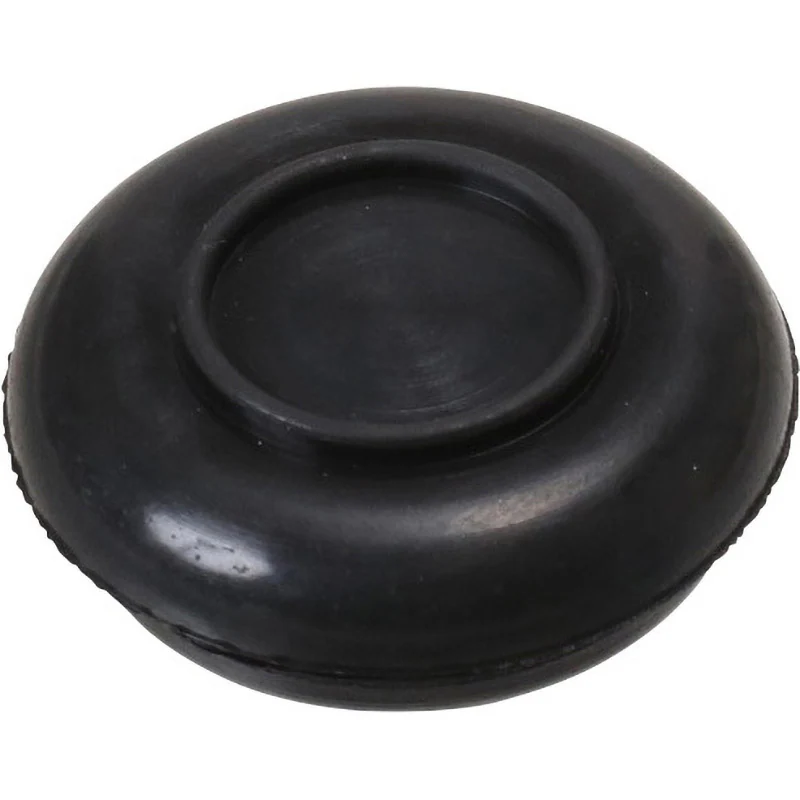

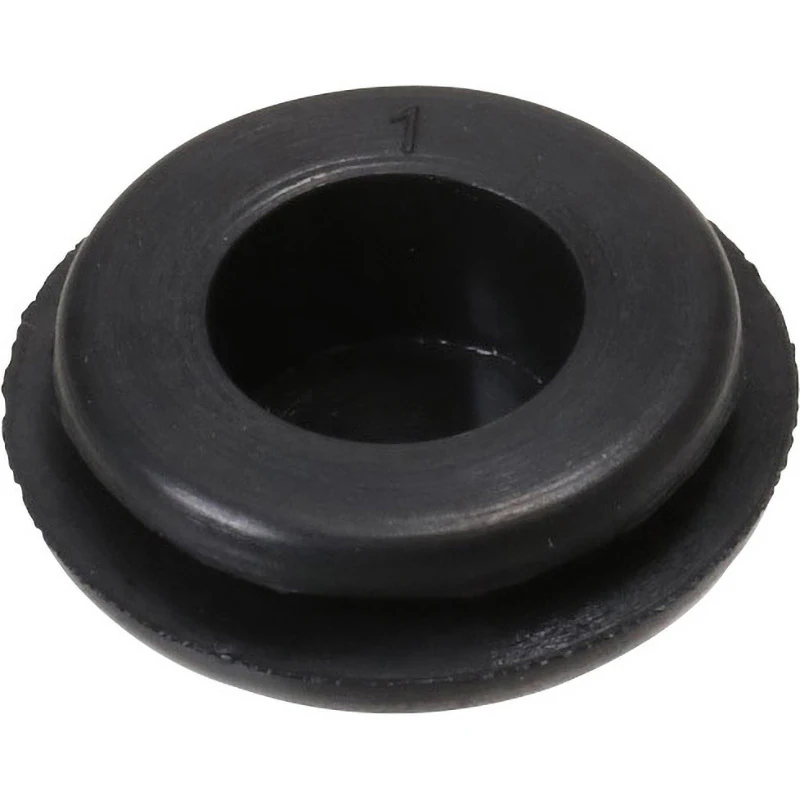

MMG-1×5 Grommet with Membrane

Description

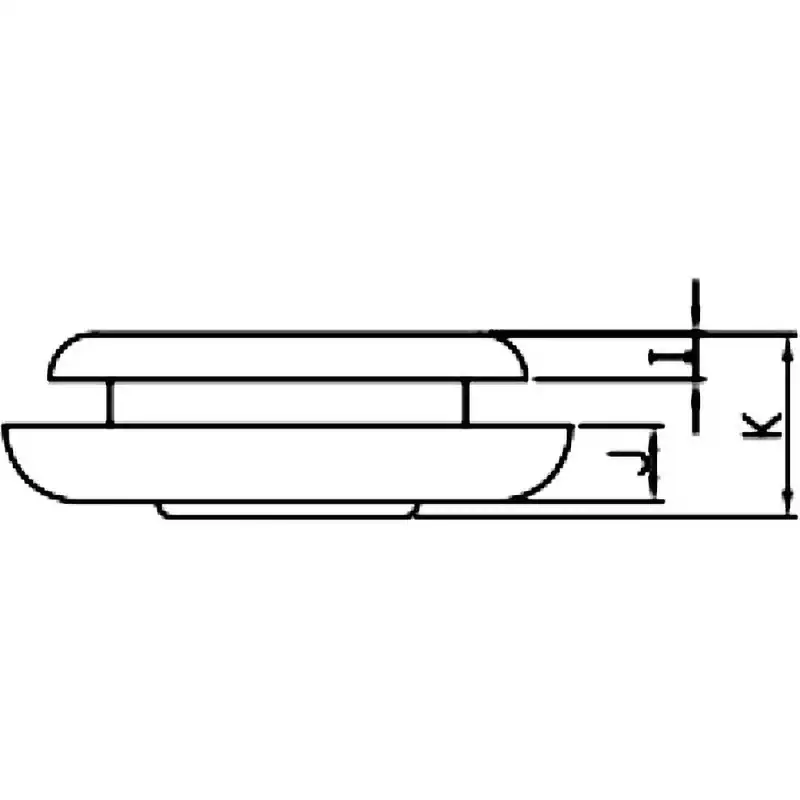

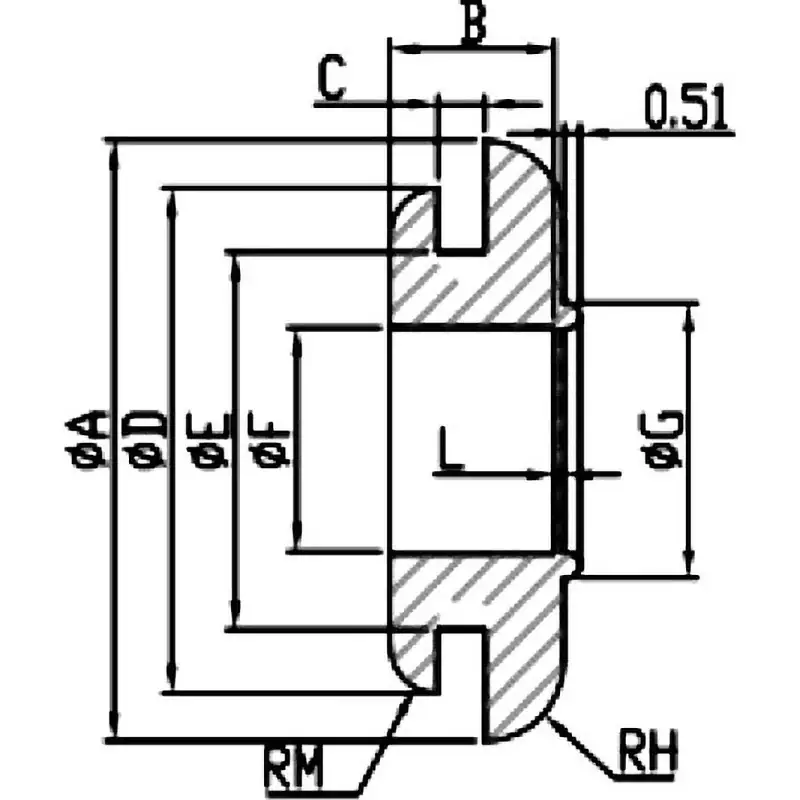

Dimensions A (mm) 23; Dimension D (mm) 20; Dimension E (mm) 16; Dimension F (mm) 11; Dimension B (mm) 6.45; Dimension C (mm) 1.6; Dimension G (mm) 12.9; Application for wiring protection in distribution boards, control panels, measuring instruments, etc.; Material EPDM; Color Black; Operating temperature range (Celsius degrees) up to 70; Dimension L (mm) 0.65; Dimension H (mm) 3.5; Hardness 55; Dimension M (mm) 1; Dimension I (mm) 2; Dimension J (mm) 3.5; Dimension K (mm) 8.1; The membrane can be broken to pass cables through. Effective for hole filling and dust prevention.
