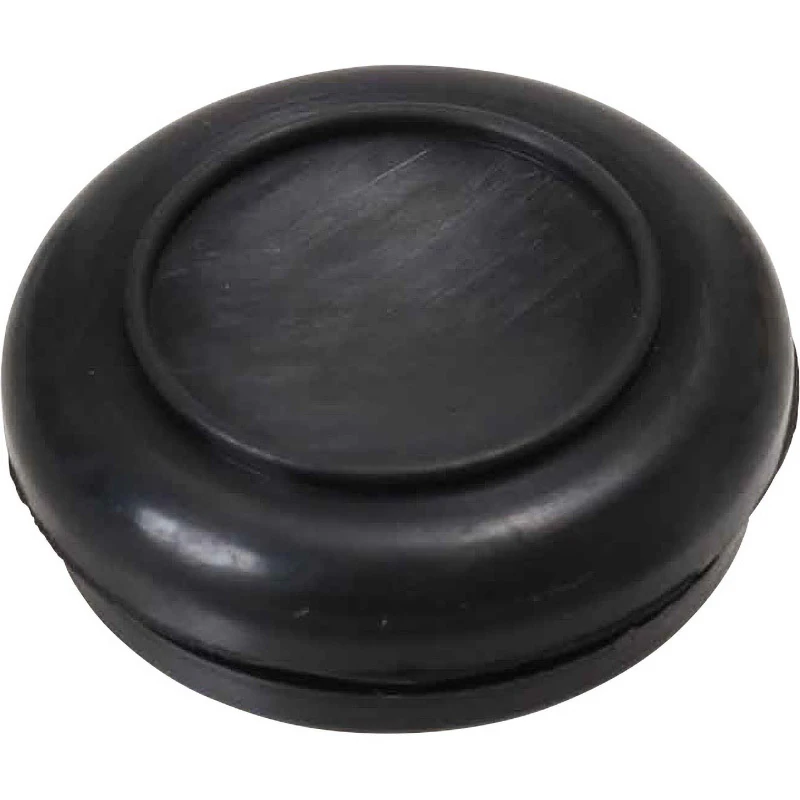

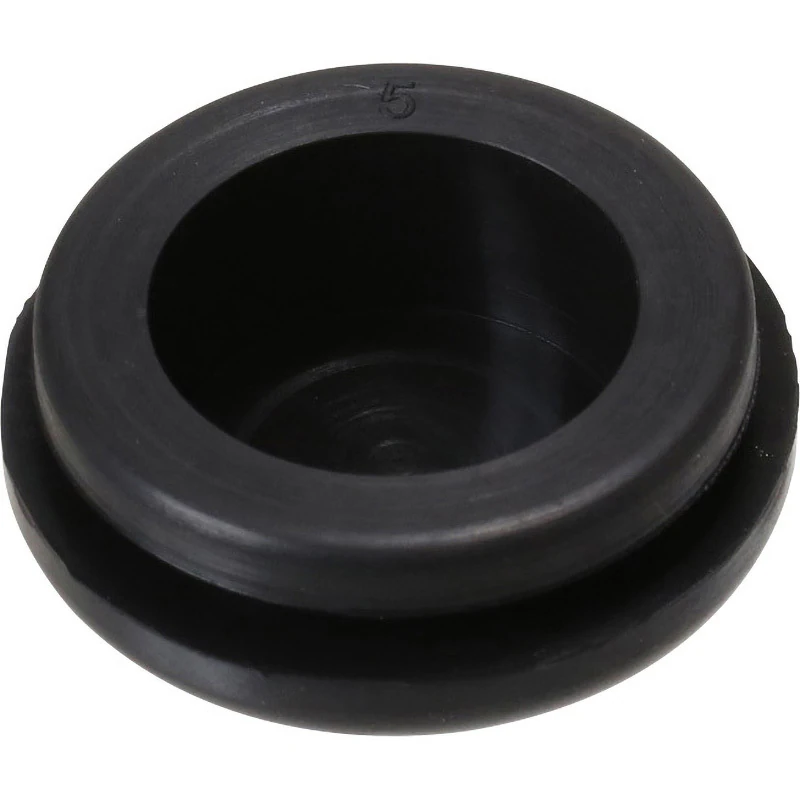

MMG-5×5 Grommet with Membrane

Description

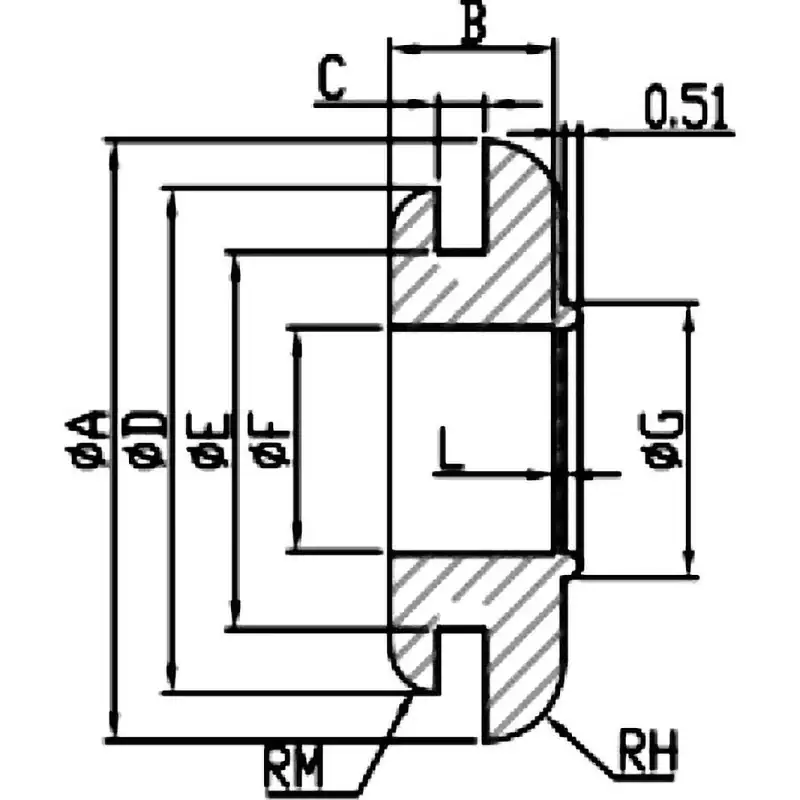

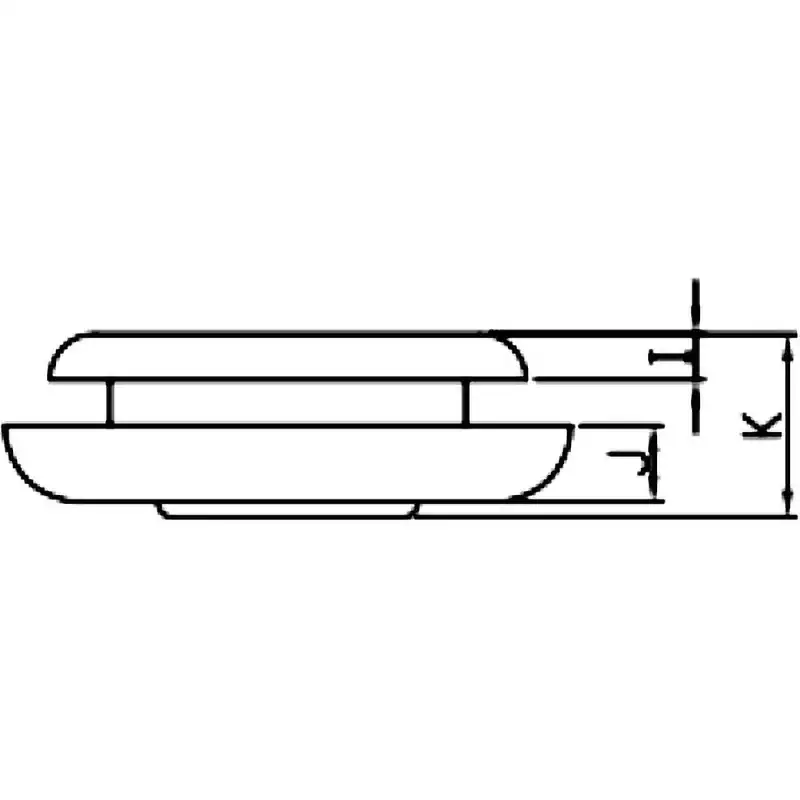

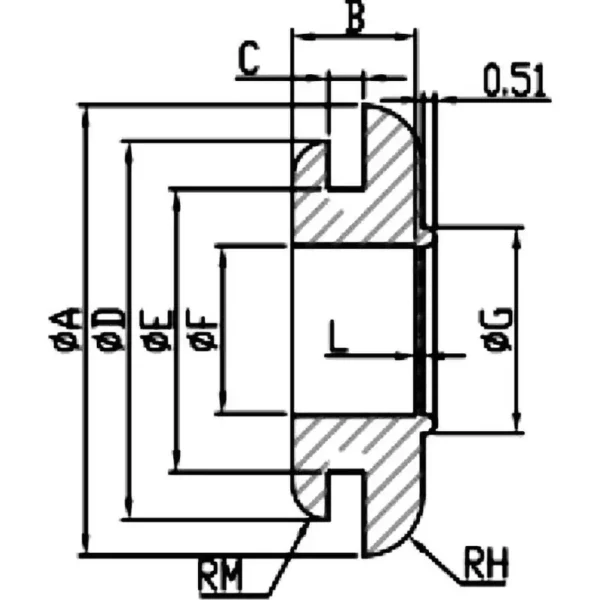

Dimensions A (mm) 31; Dimension D (mm) 28; Dimension E (mm) 24; Dimension F (mm) 19; Dimension B (mm) 9.65; Dimension C (mm) 2.3; Dimension G (mm) 21; Suitable for wiring protection in distribution panels, control panels, measuring instruments, etc.; Material EPDM; Color black; Operating temperature range (Celsius degrees) up to 70; Dimension L (mm) 0.65; Dimension H (mm) 3.5; Hardness 55; Dimension M (mm) 1; Dimension I (mm) 3; Dimension J (mm) 5; Dimension K (mm) 11.3; The membrane can be broken to allow cables to pass through. Effective for hole filling and dust prevention.
