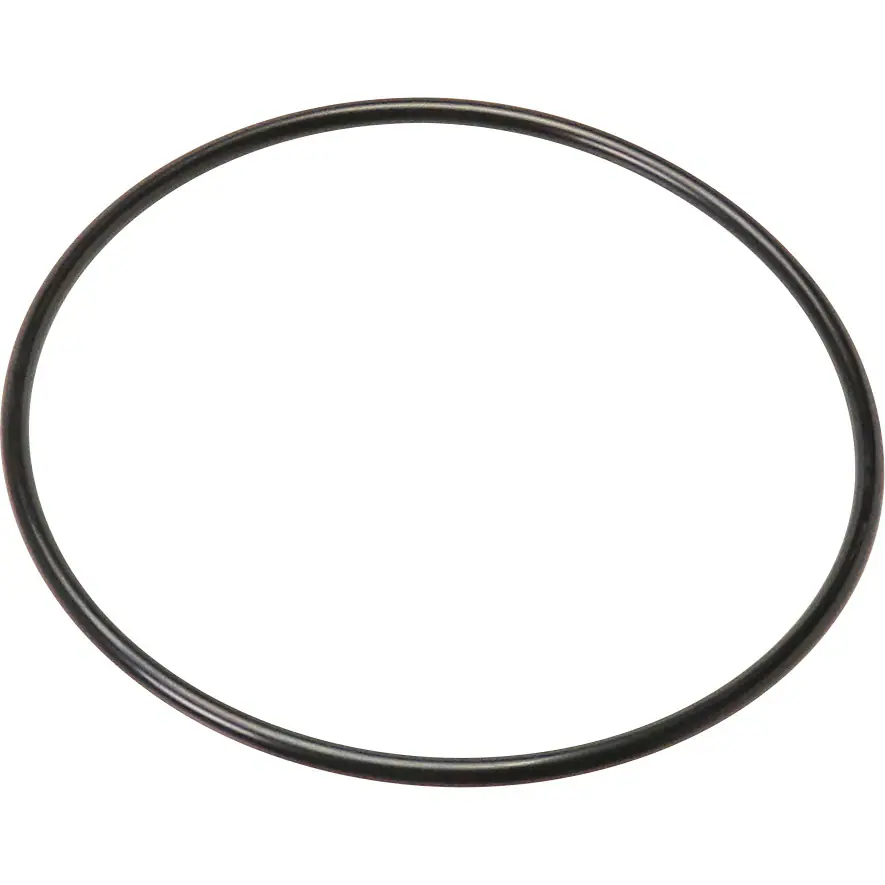

Morisei Kako O-Ring G (Fixed) NBR > G-150

Description

Material: NBR (Nitrile Rubber)
Wire Diameter/Tolerance (mm): 5.7 (plus or minus 0.13)
Type: G Shape Fixed
Inner Diameter (mm): 149.3
Nominal Size: 150
Applications: Oil seals, gaskets, oil-resistant hoses, conveyor belts, printing rolls, spinning top rolls, and other oil-resistant products.
Hardness: 70
Outer Diameter (mm): 160.7
Pressure Resistance (MPa): 7
Functions: Oil resistance, abrasion resistance, aging resistance
Heat Resistance Temperature (Celsius degrees): 100
RoHS Directive (10 substances compliance): Compliant
Inner Diameter Tolerance (mm): 1.19
Excellent oil resistance, abrasion resistance, and aging resistance.
