Description

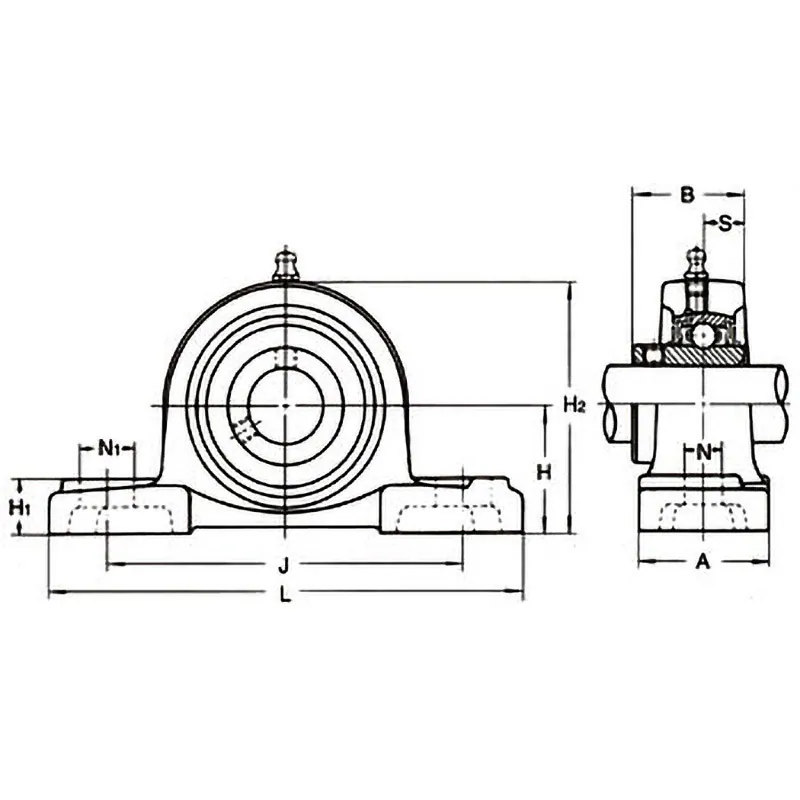

Dimension A (mm): 38
Dimension B (mm): 31
Dimension H (mm): 30.2
Dimension H1 (mm): 15
Dimension H2 (mm): 62
Dimension J (mm): 95
Dimension L (mm): 127
Dimension N (mm): 13
Dimension N1 (mm): 19
Dimension S (mm): 12.7
Shaft Diameter (mm): 12
Shape: Pillow Block Unit
Material: High Carbon Chrome Bearing Steel
Grease Nipple: With Grease Nipple
Load Type: Light Load
No Cover
Shaft Hole Type: Cylindrical Hole with Set Screw
Weight (kg): 0.65
Basic Static Load Rating (kN): 6.6
Basic Dynamic Load Rating (kN): 12.8
Mounting Bolt Specification: M10
Bearing Specification: Number UC201
Standard Bearing Box Specification: Number P203
RoHS Directive (10 Substances Compliance): Compliant
Rational Automatic Self-Alignment
Complete Dust Prevention by Fully Sealed Device between Bearing and Bearing Box
Full Compatibility between Bearing and Bearing Box Allows for Replacement of Bearings Only
Coating on the Outer Surface of Bearing Box Uses Melamine Resin-Based Baked Paint, Ensuring Good Adhesion and Long-Lasting Beautiful Gloss
