Description

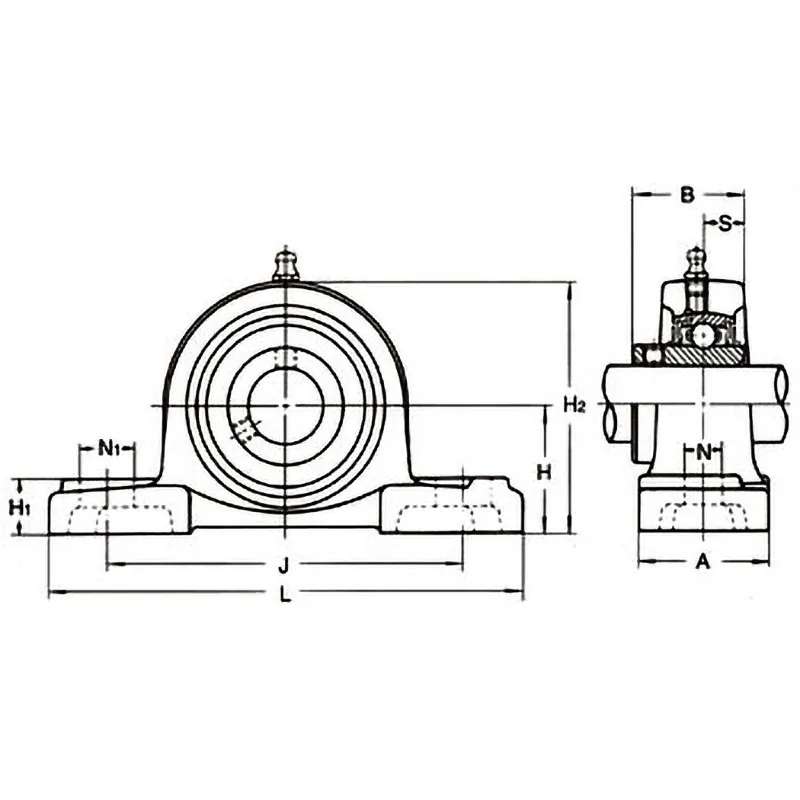

Dimension A (mm): 38
Dimension B (mm): 31
Dimension H (mm): 30.2
Dimension H1 (mm): 15
Dimension H2 (mm): 62
Dimension J (mm): 95
Dimension L (mm): 127
Dimension N (mm): 13
Dimension N1 (mm): 19
Dimension S (mm): 12.7
Shaft Diameter (mm): 15
Shape: Pillow Block Unit
Material: High Carbon Chromium Bearing Steel
Grease Nipple: Equipped with Grease Nipple
Load Type: Light Load
No Cover
Shaft Hole Type: Cylindrical Hole with Set Screw
Weight (kg): 0.63
Basic Static Load Rating (kN): 6.6
Basic Dynamic Load Rating (kN): 12.8
Mounting Bolt Size: M10
Bearing Designation: Number UC202
Standard Bearing Box Designation: Number P203
RoHS Directive (10 substances compliance): Compliant
Rational Self-Aligning Capability
Completely dustproof due to the complete sealing device between the bearing and bearing box
Only the bearing can be replaced due to complete compatibility between the bearing and bearing box
The outer surface of the bearing box is coated with a melamine resin-based baked paint, ensuring good adhesion of the coating and maintaining a beautiful gloss for a long time
