Description

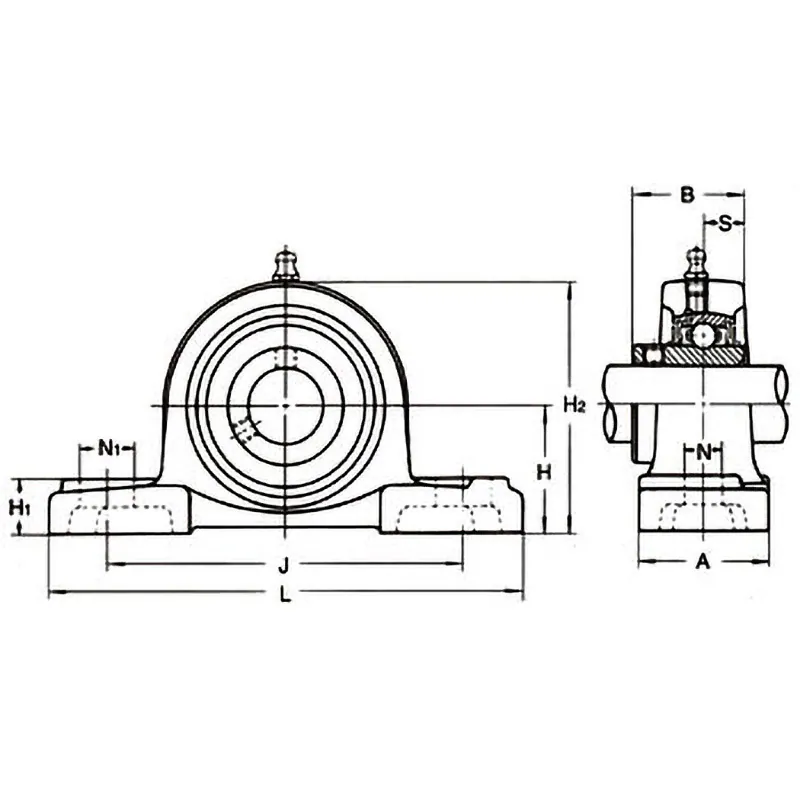

Dimension A (mm): 38
Dimension B (mm): 31
Dimension H (mm): 33.3
Dimension H1 (mm): 15
Dimension H2 (mm): 65
Dimension J (mm): 95
Dimension L (mm): 127
Dimension N (mm): 13
Dimension N1 (mm): 19
Dimension S (mm): 12.7
Shaft Diameter (mm): 20
Shape: Pillow Shape Unit
Material: High Carbon Chrome Bearing Steel
Grease Nipple: Grease Nipple Included
Load Type: Light Load
No Cover
Shaft Hole Type: Cylindrical Hole with Set Screw
Weight (kg): 0.65
Basic Static Load Rating (kN): 6.6
Basic Dynamic Load Rating (kN): 12.8
Mounting Bolt Size: M10
Bearing Designation: UC204
Standard Bearing Box Designation: P204
RoHS Directive (10 Substances Compliance): Compliant
Rational Self-Alignment
Completely dust-proof due to the complete sealing device of the bearing and bearing box
Possible to replace only the bearing due to complete compatibility between the bearing and bearing box
The coating on the outer surface of the bearing box uses melamine resin-based baked paint, ensuring good adhesion of the paint film and maintaining a beautiful gloss for a long time
