Description

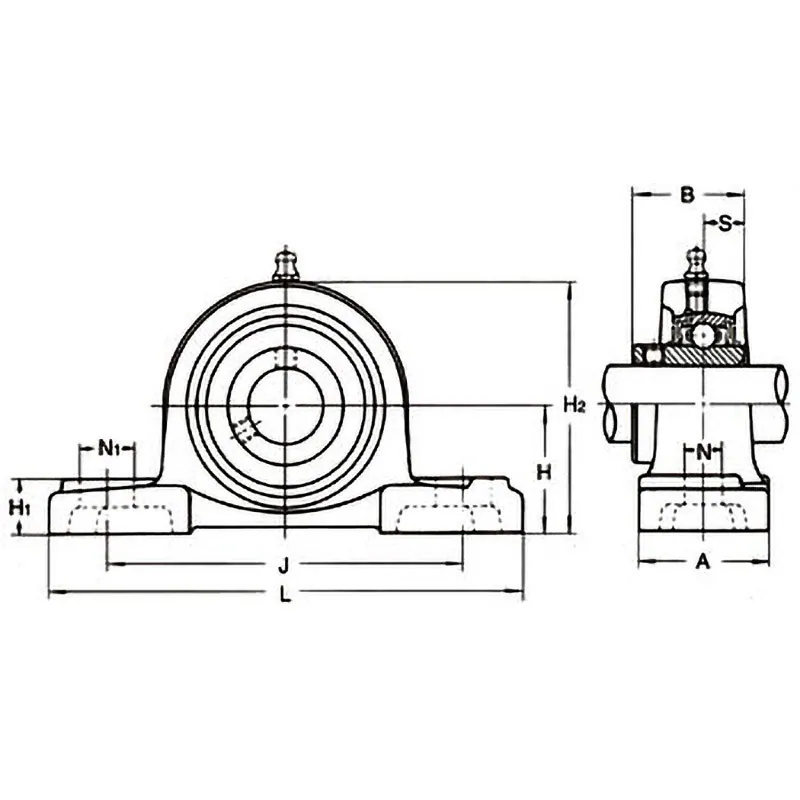

Dimension A (mm): 48
Dimension B (mm): 42.9
Dimension H (mm): 47.6
Dimension H1 (mm): 19
Dimension H2 (mm): 94
Dimension J (mm): 127
Dimension L (mm): 167
Dimension N (mm): 17
Dimension N1 (mm): 21
Dimension S (mm): 17.5
Axis diameter (mm): 35

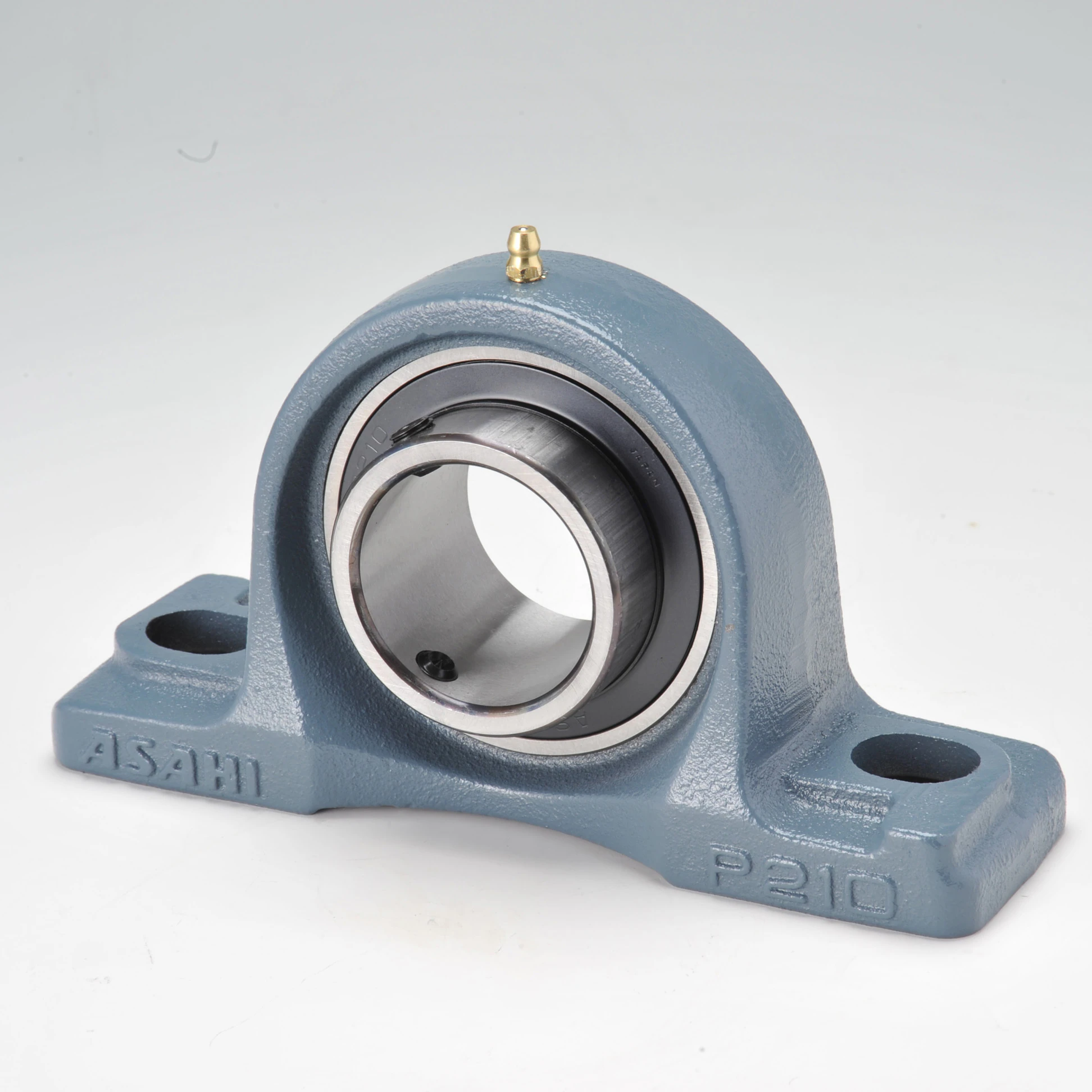

Shape: Pillow block unit
Material: High carbon chromium bearing steel
Grease nipple: With grease nipple
Load type: For light load
No cover
Axis hole type: Cylindrical hole with set screw
Weight (kg): 1.59
Basic static load rating (kN): 15.4
Basic dynamic load rating (kN): 25.9
Mounting bolt designation: M14
Bearing designation: Number UC207
Standard bearing box designation: Number P207
RoHS directive (10 substances compliance): Compliant
Rational self-aligning property
The complete sealing device between the bearing and bearing box provides full dust protection
Complete compatibility between the bearing and bearing box allows for replacement of the bearing only
The outer surface of the bearing box is coated with melamine resin-based baked paint, providing good adhesion of the paint film and maintaining a beautiful gloss for a long time
