Description

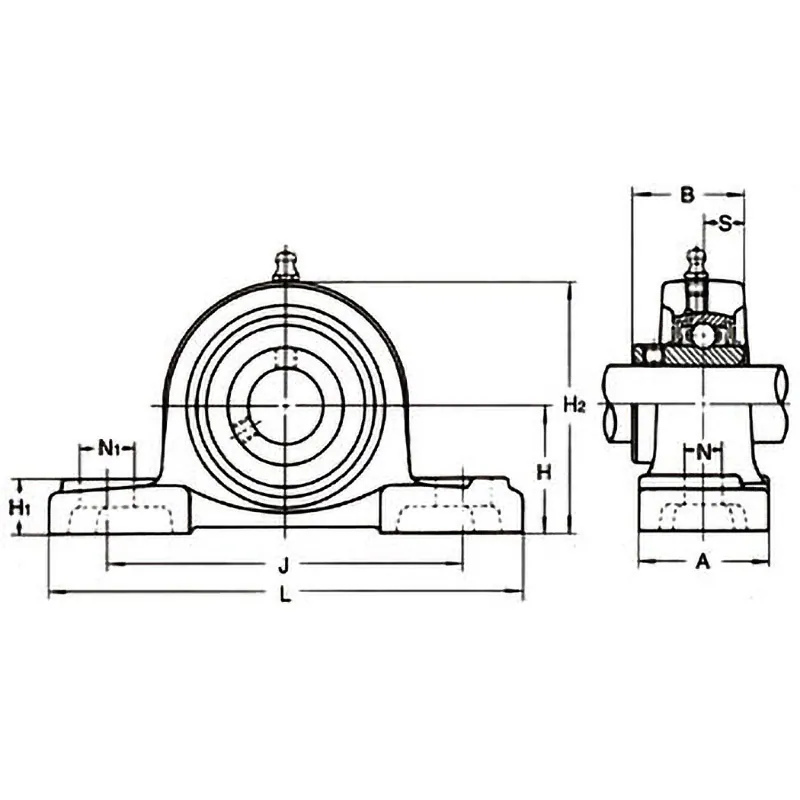

Dimension A (mm): 54
Dimension B (mm): 49.2
Dimension H (mm): 49.2
Dimension H1 (mm): 19
Dimension H2 (mm): 100
Dimension J (mm): 137
Dimension L (mm): 184
Dimension N (mm): 17
Dimension N1 (mm): 25
Dimension S (mm): 19
Axis diameter (mm): 40

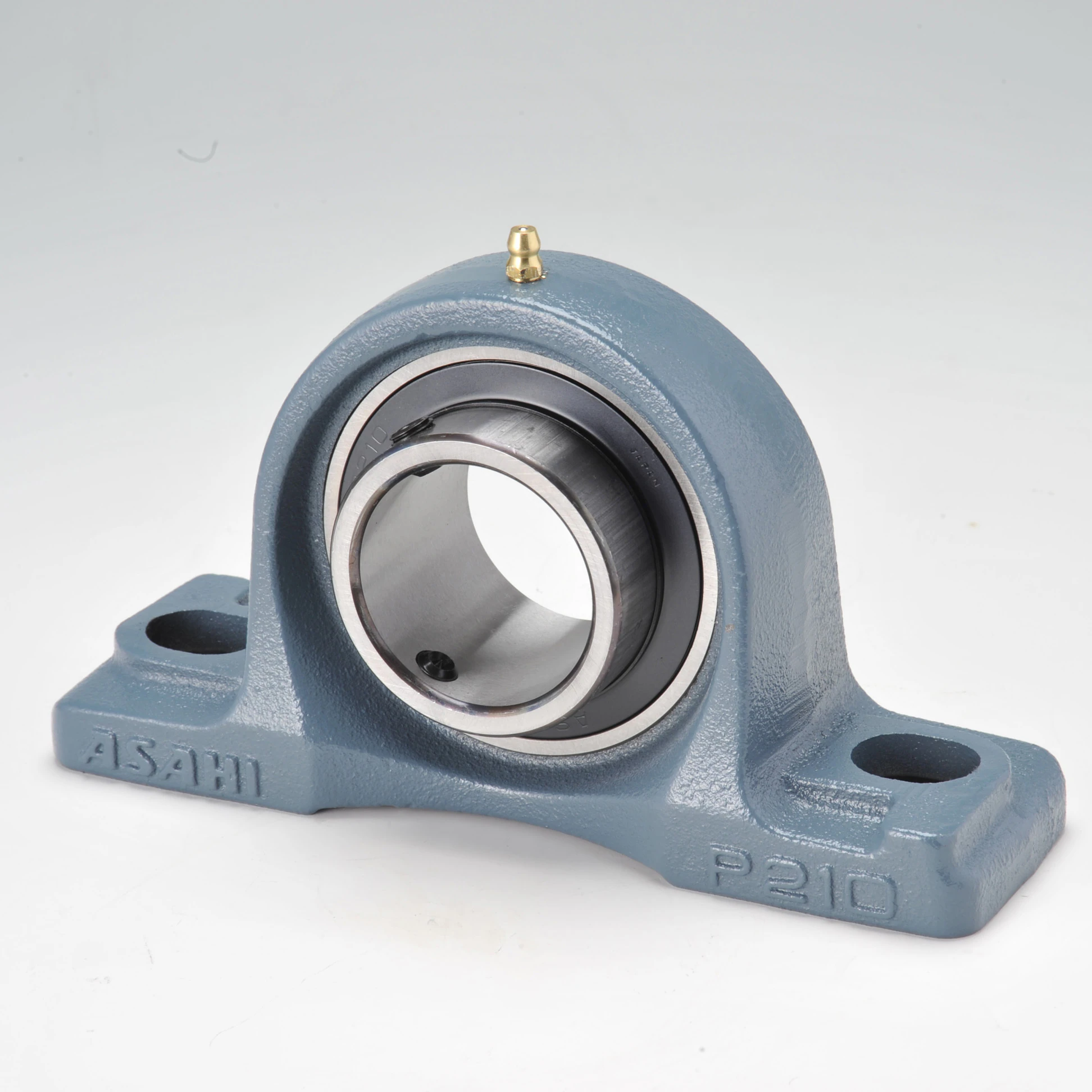

Shape: Pillow shape unit
Material: High-carbon chromium bearing steel
Grease nipple: Grease nipple included
Load type: Light load
No cover
Axis hole type: Cylindrical hole with set screw
Mass (kg): 1.92
Basic static load rating (kN): 17.9
Basic dynamic load rating (kN): 29.3
Mounting bolt specification: M14
Bearing specification: Number UC208
Standard bearing housing specification: Number P208
RoHS directive (10 substances compliance): Compliant
Rational self-aligning capability
Completely dust-proof due to the complete sealing device of the bearing and bearing housing
Possible to replace only the bearing due to the complete compatibility between the bearing and bearing housing
The coating on the outer surface of the bearing housing uses melamine resin-based baked paint, which has good adhesion and maintains a beautiful gloss for a long time
