Description

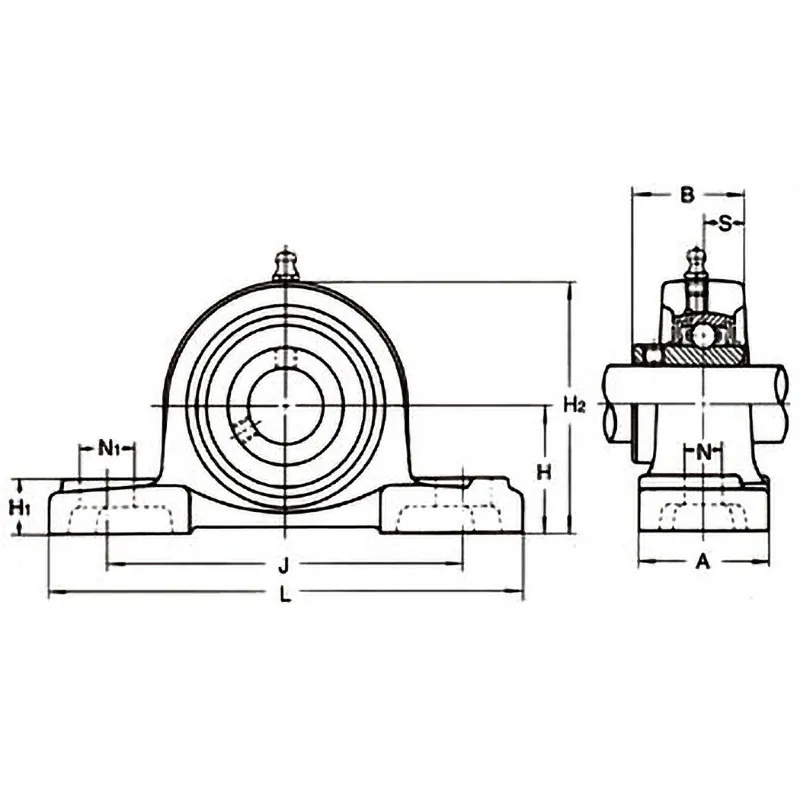

Dimension A (mm): 54
Dimension B (mm): 49.2
Dimension H (mm): 54
Dimension H1 (mm): 20
Dimension H2 (mm): 108
Dimension J (mm): 146
Dimension L (mm): 190
Dimension N (mm): 17
Dimension N1 (mm): 22
Dimension S (mm): 19
Axis diameter (mm): 45
Shape: Pillow block unit
Material: High carbon chromium bearing steel
Grease nipple: Grease nipple included
Load type: Light load
No cover
Axis hole type: Cylindrical hole with set screw
Weight (kg): 2.19
Basic static load rating (kN): 20.5
Basic dynamic load rating (kN): 33
Mounting bolt specification: M14
Bearing specification: Number UC209
Standard bearing housing specification: Number P209
RoHS directive (10 substances compliance): Compliant
Rational self-aligning capability
Completely dustproof due to the complete sealing device of the bearing and bearing housing
Possible to replace only the bearing due to the complete compatibility between the bearing and bearing housing
The outer surface of the bearing housing is coated with melamine resin-based baked paint, which has good adhesion and retains a beautiful gloss for a long time.
