Description

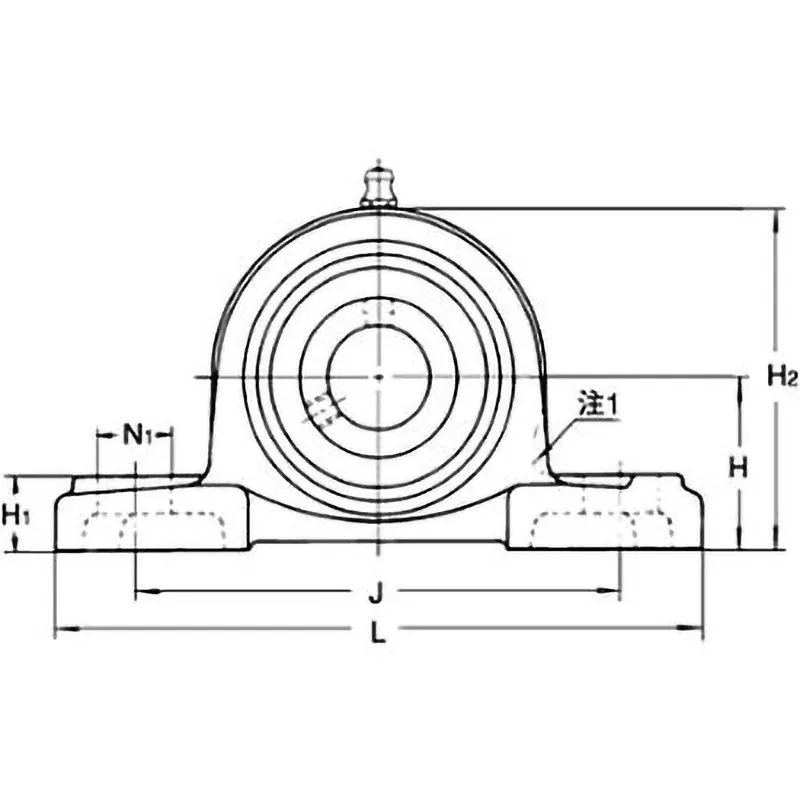

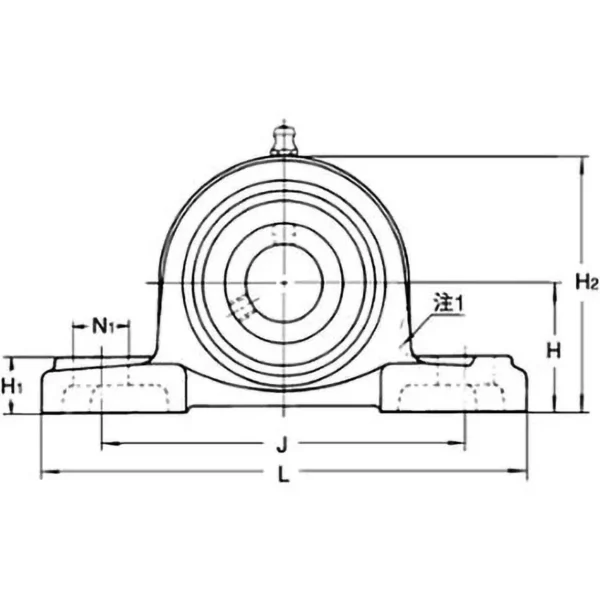

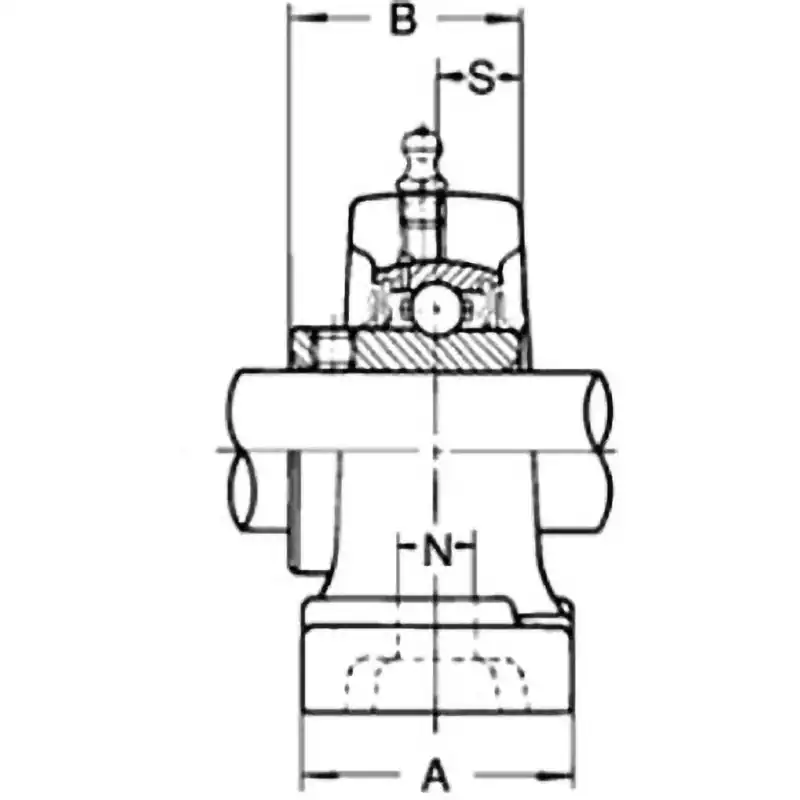

Dimension A (mm): 60
Dimension A4 (mm): 91
Dimension A5 (mm): 100
Dimension A6 (mm): 11
Dimension A7 (mm): 10
Dimension B (mm): 55.6
Dimension H (mm): 63.5
Dimension H1 (mm): 22
Dimension H2 (mm): 126
Dimension H5 (mm): 133
Dimension J (mm): 171
Dimension L (mm): 219
Dimension N (mm): 20
Dimension N1 (mm): 25
Dimension S (mm): 22.2
Axis diameter (mm): 55
Shape: Pillow type unit
Material: High carbon chromium bearing steel
Grease nipple: With grease nipple
Load type: Light load
No cover
Axis hole type: Cylindrical hole with set screw
Weight (kg): 3.3
Basic static load rating (kN): 29.4
Basic dynamic load rating (kN): 43
Mounting bolt specification: M16
RoHS Directive (10 substances compliant): Compliant
Rational self-aligning capability
Completely dust-proof due to the complete sealing device between the bearing and bearing box
Possible to replace only the bearing due to the complete compatibility between the bearing and bearing box
The surface coating of the bearing box uses a melamine resin-based baked paint, ensuring good adhesion of the paint film and maintaining a beautiful gloss for a long time
