Description

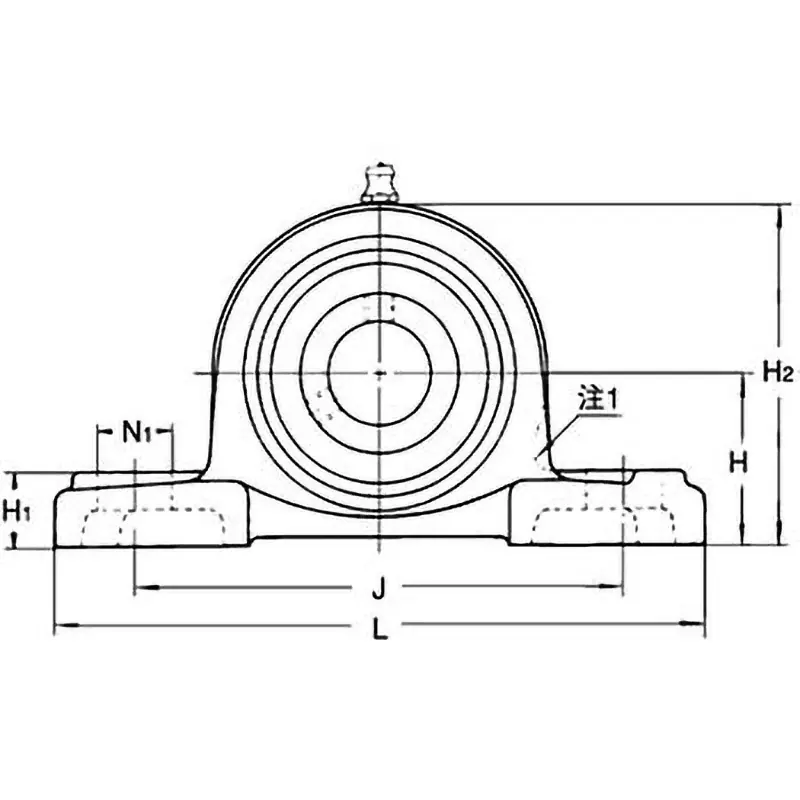

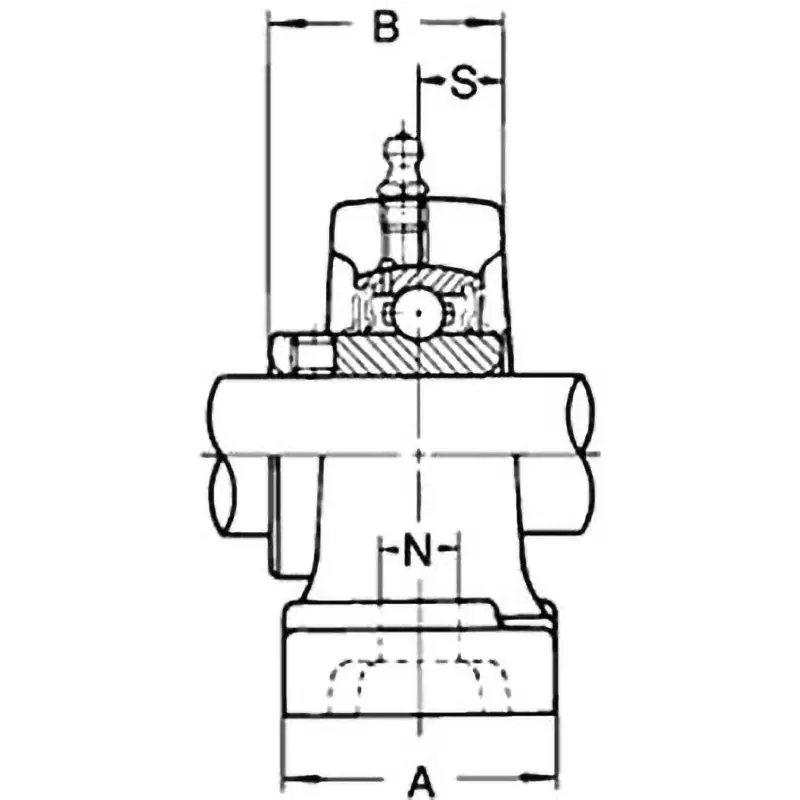

Dimension A (mm): 70
Dimension A4 (mm): 102
Dimension A5 (mm): 118
Dimension A6 (mm): 10
Dimension A7 (mm): 13
Dimension B (mm): 65.1
Dimension H (mm): 76.2
Dimension H1 (mm): 27
Dimension H2 (mm): 150
Dimension H5 (mm): 156
Dimension J (mm): 203
Dimension L (mm): 265
Dimension N (mm): 25
Dimension N1 (mm): 29
Dimension S (mm): 25.4
Axis diameter (mm): 65
Shape: Pillow shape unit
Material: High carbon chromium bearing steel
Grease nipple: Grease nipple included
Load type: Light load
No cover
Axis hole type: Cylindrical hole with set screw
Weight (kg): 5.6
Basic static load rating (kN): 40
Basic dynamic load rating (kN): 57.5
Mounting bolt specification: M20
RoHS directive (10 substances compliance): Compliant
Rational self-aligning capability
Complete dust-proof with the fully sealed device of the bearing and bearing housing
It is possible to replace only the bearing due to the complete compatibility between the bearing and the bearing housing
The outer surface of the bearing housing is painted with melamine resin-based baked paint, ensuring good adhesion of the coating and maintaining a beautiful gloss for a long time
