Description

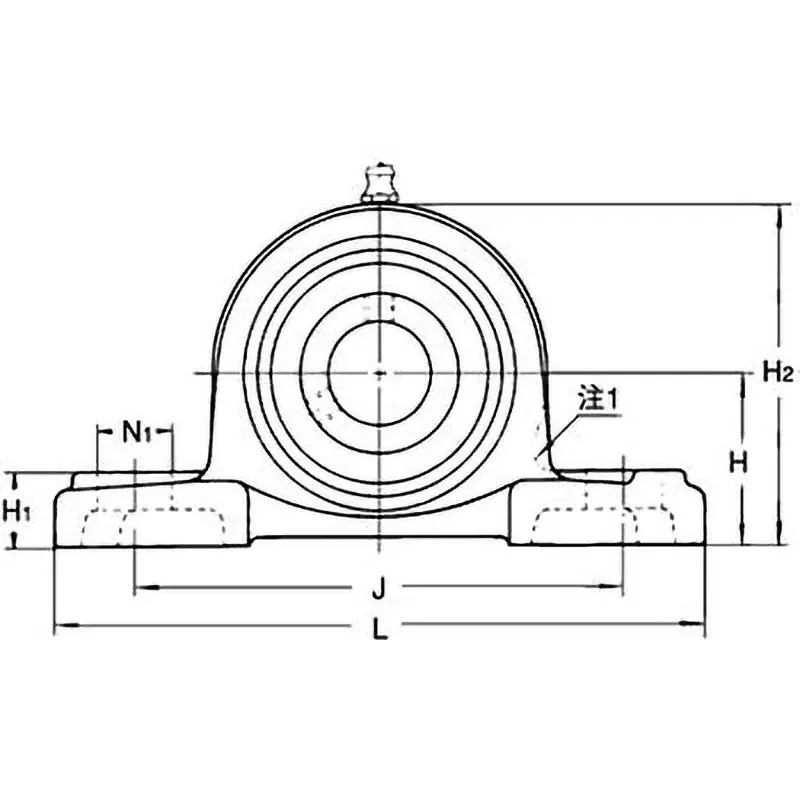

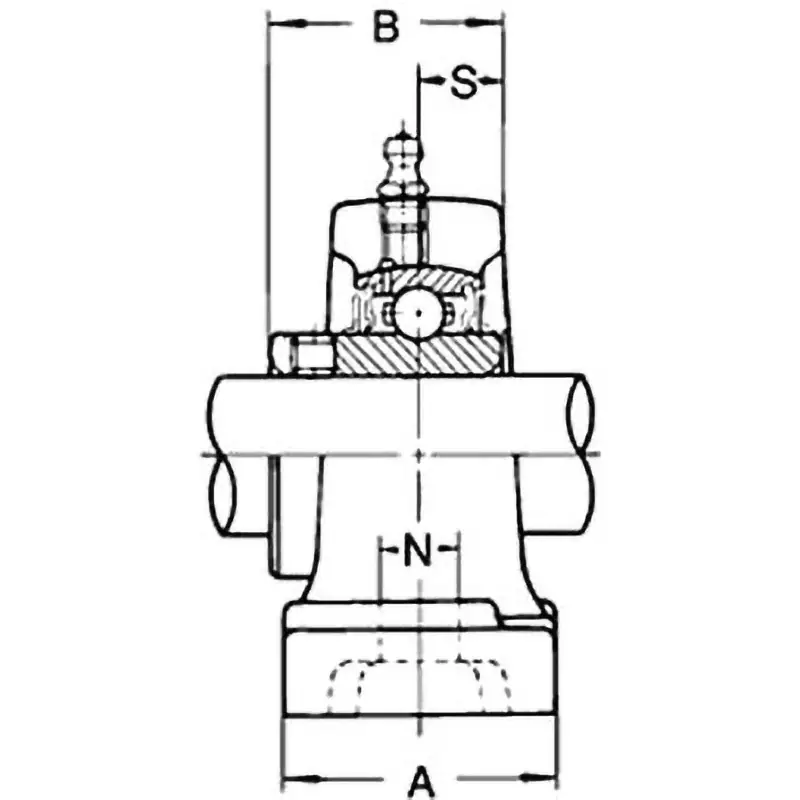

Dimension A (mm): 72
Dimension A4 (mm): –
Dimension A5 (mm): 134
Dimension A6 (mm): –
Dimension A7 (mm): 16
Dimension B (mm): 74.6
Dimension H (mm): 79.4
Dimension H1 (mm): 27
Dimension H2 (mm): 156
Dimension H5 (mm): 162
Dimension J (mm): 210
Dimension L (mm): 266
Dimension N (mm): 25
Dimension N1 (mm): 31
Dimension S (mm): 30.2
Axis diameter (mm): 70
Shape: Pillow shape unit
Material: High carbon chrome bearing steel
Grease nipple: Grease nipple included
Load type: Light load
No cover
Axis hole type: Cylindrical hole with set screw
Weight (kg): 7.3
Basic static load rating (kN): 44
Basic dynamic load rating (kN): 62
Mounting bolt specification: M20
RoHS directive (10 substances compliance): Compliant
Rational self-aligning capability
Complete dust-proofing due to the fully sealed device of the bearing and bearing housing
Possibility to replace only the bearing due to complete compatibility between the bearing and bearing housing
The painting on the outer surface of the bearing housing uses melamine resin-based baked paint, ensuring good adhesion of the paint film and maintaining a beautiful gloss for a long time.
