Description

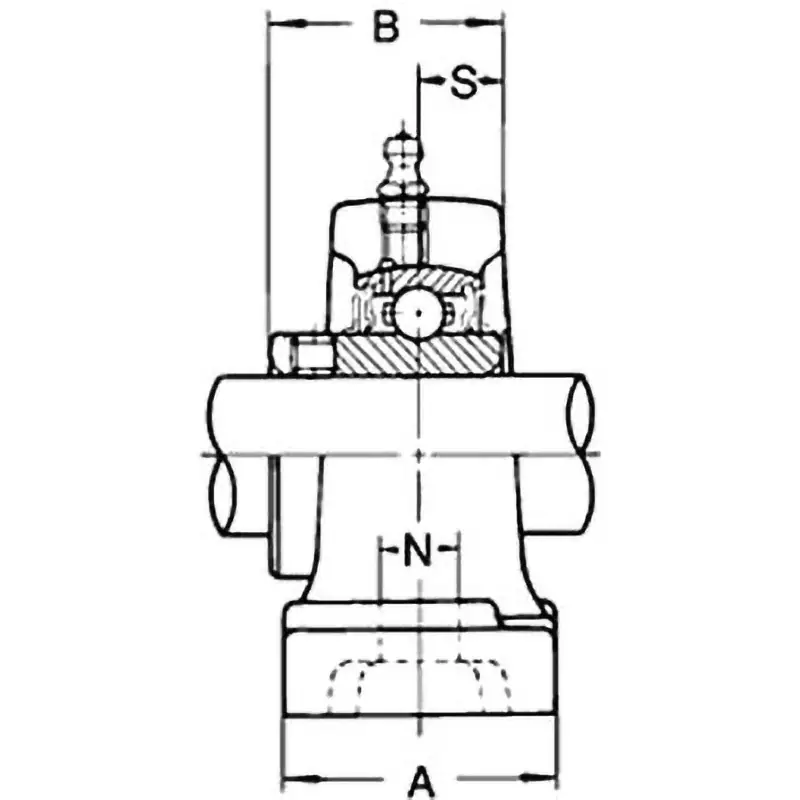

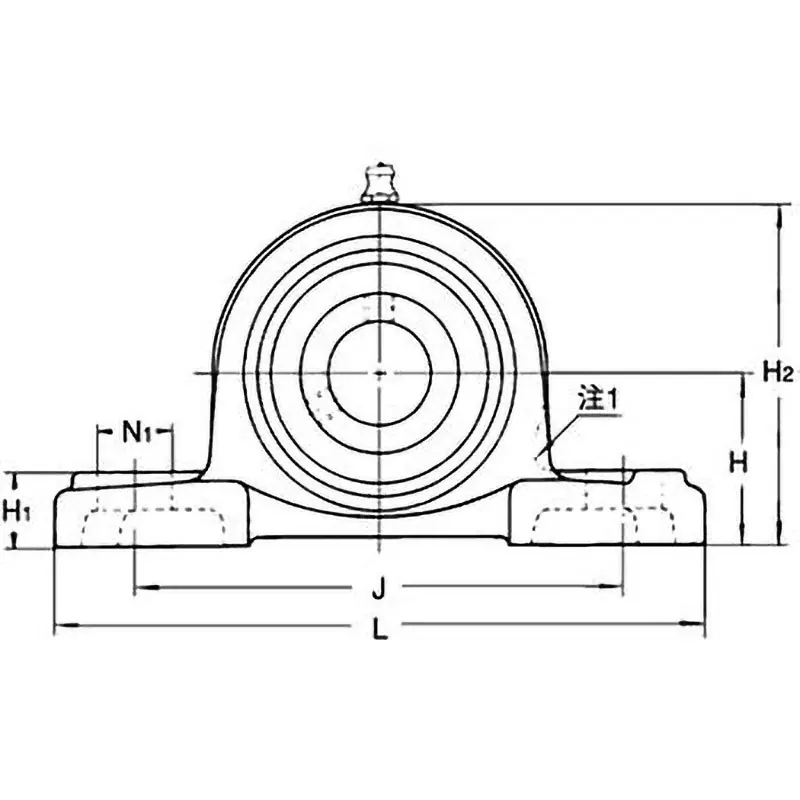

Dimension A (mm): 78
Dimension A4 (mm): –
Dimension A5 (mm): 146
Dimension A6 (mm): –
Dimension A7 (mm): 15
Dimension B (mm): 82.6
Dimension H (mm): 88.9
Dimension H1 (mm): 30
Dimension H2 (mm): 175
Dimension H5 (mm): 188
Dimension J (mm): 232
Dimension L (mm): 292
Dimension N (mm): 25
Dimension N1 (mm): 31
Dimension S (mm): 33.3
Axis diameter (mm): 80
Shape: Pillow shape unit
Material: High carbon chromium bearing steel
Grease nipple: With grease nipple
Load type: Light load
No cover
Axis hole type: Cylindrical hole with set screw
Weight (kg): 10.0
Basic static load rating (kN): 53
Basic dynamic load rating (kN): 72.5
Mounting bolt specification: M20
RoHS directive (10 substances compliance): Compliant
Rational self-aligning capability
Completely dustproof due to the complete sealing device between the bearing and the bearing box
Only the bearing can be replaced due to the complete compatibility between the bearing and the bearing box
The outer surface of the bearing box is painted with melamine resin-based baked paint, ensuring excellent adhesion of the paint film and maintaining beautiful gloss for a long time.
