Description

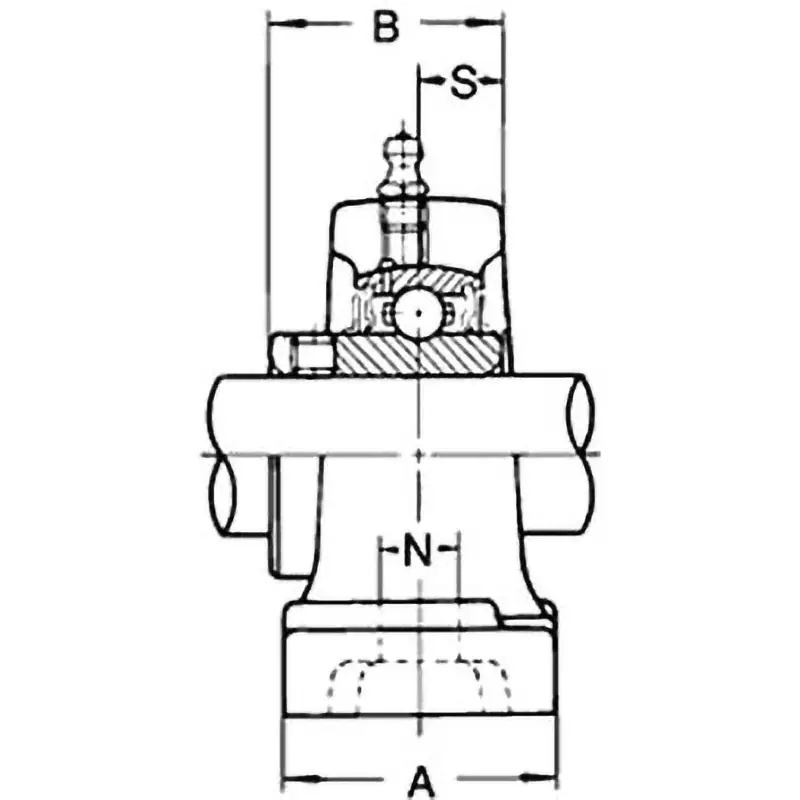

Dimension A (mm): 83
Dimension A4 (mm): –
Dimension A5 (mm): 150
Dimension A6 (mm): –
Dimension A7 (mm): 16
Dimension B (mm): 85.7

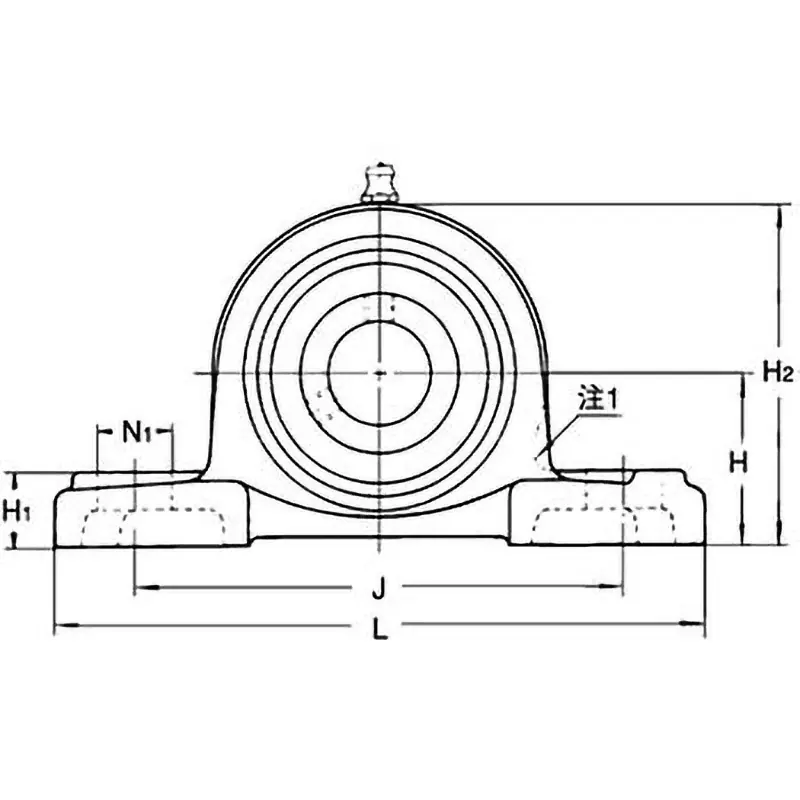

Dimension H (mm): 95.2
Dimension H1 (mm): 32
Dimension H2 (mm): 187
Dimension H5 (mm): 199
Dimension J (mm): 247
Dimension L (mm): 310
Dimension N (mm): 25
Dimension N1 (mm): 31
Dimension S (mm): 34.1
Axis diameter (mm): 85
Shape: Pillow block unit
Material: High carbon chrome bearing steel
Grease nipple: With grease nipple
Load type: Light load
No cover
Axis hole type: Cylindrical hole with set screw
Weight (kg): 12.2
Basic static load rating (kN): 61.8
Basic dynamic load rating (kN): 83.5
Mounting bolt designation: M20
RoHS directive (10 substances compliance): Compliant
Rational self-aligning capability
Completely dust-proof thanks to a complete sealing device for the bearing and bearing housing
Possible to replace only the bearing due to complete compatibility between the bearing and the bearing housing
The outer surface of the bearing housing is coated with melamine resin-based baked paint, ensuring good adhesion of the paint film and maintaining a beautiful gloss for a long time.
