Description

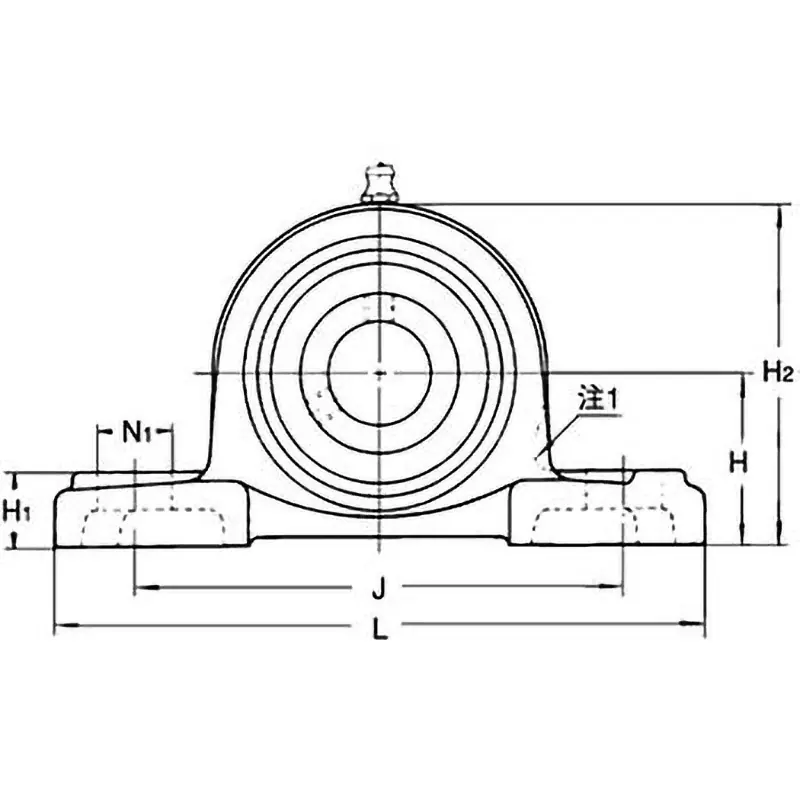

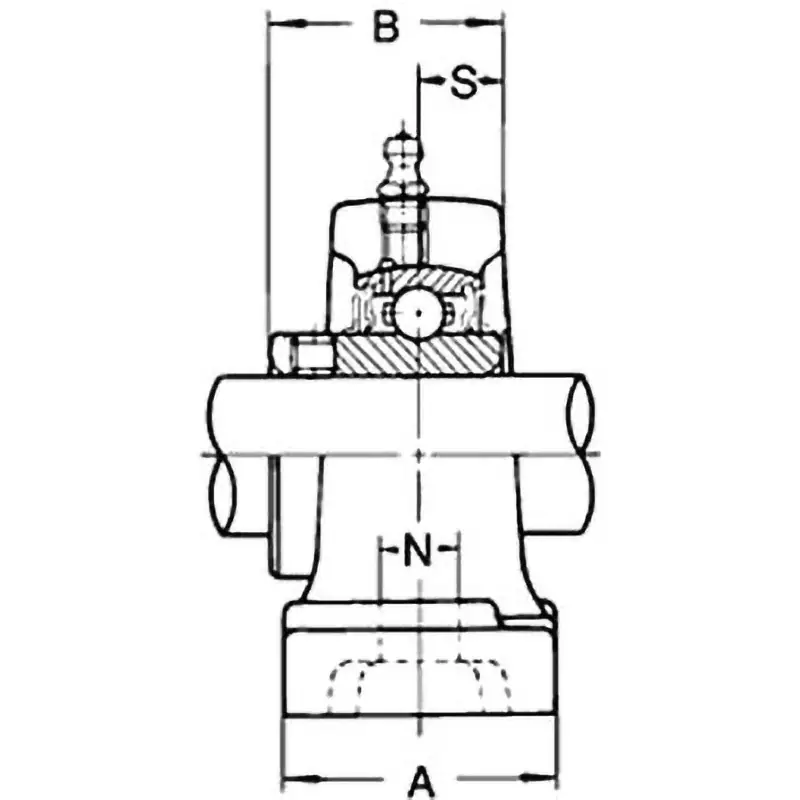

Dimension A(mm): 88
Dimension A4(mm): –
Dimension A5(mm): 164
Dimension A6(mm): –
Dimension A7(mm): 17
Dimension B(mm): 96
Dimension H(mm): 101.6
Dimension H1(mm): 34
Dimension H2(mm): 200
Dimension H5(mm): 211
Dimension J(mm): 262
Dimension L(mm): 327
Dimension N(mm): 27
Dimension N1(mm): 33
Dimension S(mm): 39.7
Axle diameter(mm): 90
Shape: Pillow shape unit
Material: High carbon chrome bearing steel
Grease nipple: Grease nipple included
Load type: Light load
No cover
Axle hole type: Cylindrical hole with set screw
Mass(kg): 14.7
Basic static load rating(kN): 71.4
Basic dynamic load rating(kN): 95.5
Mounting bolt nominal: M22
RoHS directive (10 substances compliance): Compliant
Rational automatic self-alignment
Complete dustproofing due to the complete sealing device between the bearing and the bearing box
Complete compatibility between the bearing and the bearing box allows for the replacement of only the bearing
The surface of the bearing box is coated with melamine resin-type baked paint, which has good adhesion and maintains a beautiful gloss for a long time
