Description

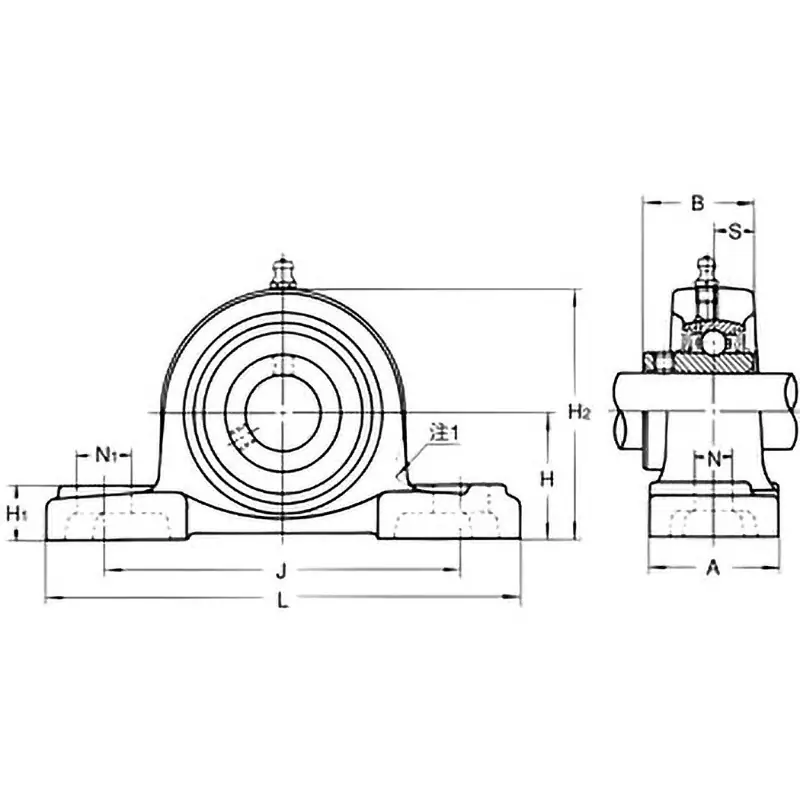

Dimensions A (mm): 51
Dimensions B (mm): 38.1
Dimensions H (mm): 44.4
Dimensions H1 (mm): 18
Dimensions H2 (mm): 85
Dimensions J (mm): 119
Dimensions L (mm): 159
Dimensions N (mm): 17
Dimensions N1 (mm): 25
Dimensions S (mm): 15.9
Axis diameter (mm): 25
Shape: Pillow shape unit
Bearing call number: UCX05
Mounting bolt specification: M14
Unit weight (kg): 1.5
Bearing box call number: PX05
Basic dynamic load rating Cr (kN): 19.6
Basic static load rating Cor (kN): 11.3
RoHS Directive (10 substances compliant): Compliant
Rational self-aligning capability
Completely dustproof due to complete sealing device between bearing and bearing box
Complete interchangeability between bearing and bearing box allows for replacement of the bearing only
The outer surface of the bearing box is coated with melamine resin-based baked paint, providing good adhesion of the coating and maintaining a beautiful gloss for a long time.
