Description

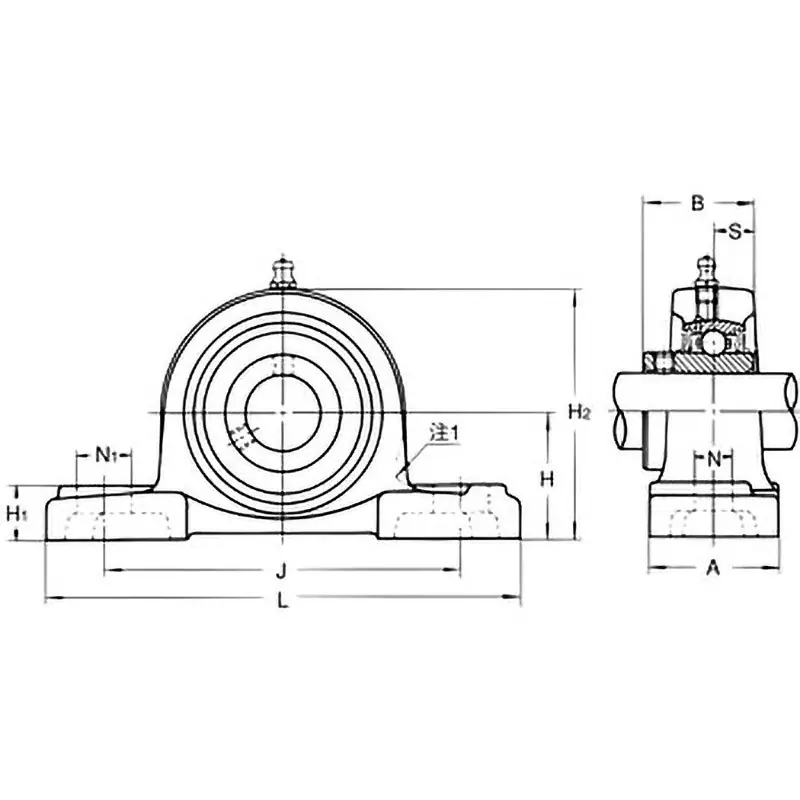

Dimensions A (mm): 57
Dimensions B (mm): 42.9
Dimensions H (mm): 47.6
Dimensions H1 (mm): 20
Dimensions H2 (mm): 94
Dimensions J (mm): 127
Dimensions L (mm): 175
Dimensions N (mm): 17
Dimensions N1 (mm): 25
Dimensions S (mm): 17.5
Shaft diameter (mm): 30
Shape: Pillow block unit
Bearing designation number: UCX06
Mounting bolt designation: M14
Unit mass (kg): 2.0
Bearing housing designation number: PX06
Basic dynamic load rating Cr (kN): 25.9
Basic static load rating Cor (kN): 15.4
RoHS directive (10 substance compliance): Compliant
Rational self-aligning capability
Completely dustproof due to a complete sealing device between the bearing and the bearing housing
It is possible to replace only the bearing due to complete compatibility between the bearing and bearing housing
The outer surface of the bearing housing is painted with a melamine resin-based baked-on paint, which has good adhesion and maintains a beautiful gloss for a long time
