NSK (Nippon Seiko Kabushiki Kaisha) Pillow Block Unit > UCPX07

Description

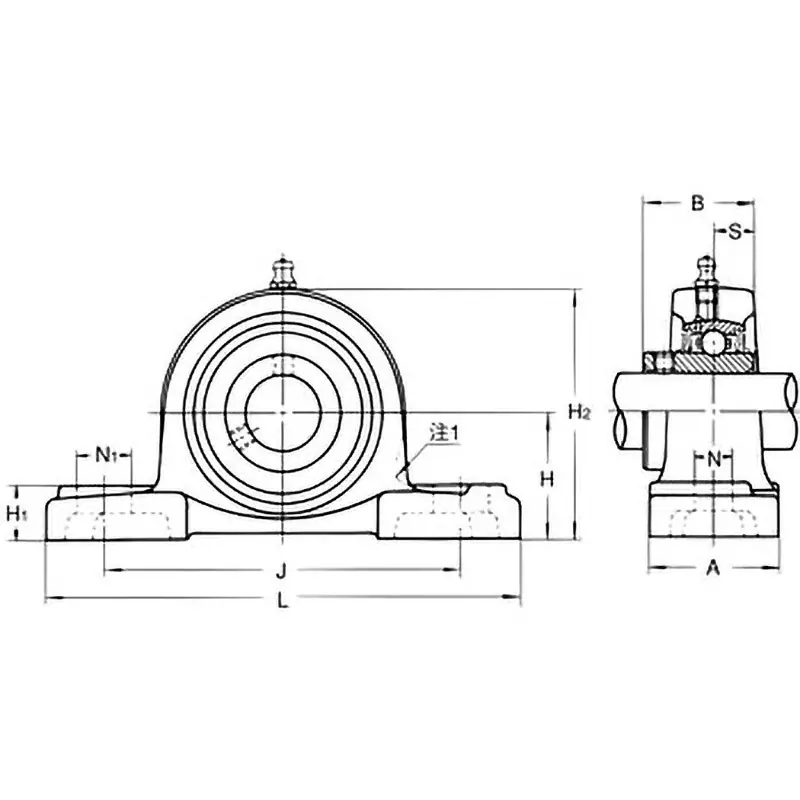

Dimension A (mm): 57
Dimension B (mm): 49.2
Dimension H (mm): 54
Dimension H1 (mm): 22
Dimension H2 (mm): 105
Dimension J (mm): 144
Dimension L (mm): 203
Dimension N (mm): 17
Dimension N1 (mm): 30
Dimension S (mm): 19
Axis diameter (mm): 35
Shape: Pillow type unit
Bearing designation number: UCX07
Mounting bolt designation: M14
Unit mass (kg): 2.7
Bearing box designation number: PX07
Basic dynamic load rating Cr (kN): 29.3
Basic static load rating Cor (kN): 17.9
RoHS directive (10 substances compliant): Compliant

Rational self-aligning capability

Completely dustproof due to the complete sealing device of the bearing and bearing box

Possible to replace only the bearing due to the complete compatibility between the bearing and the bearing box

The coating on the outer surface of the bearing box uses melamine resin-based baked paint, resulting in good adhesion of the paint film and beautiful gloss that lasts for a long time.
