Description

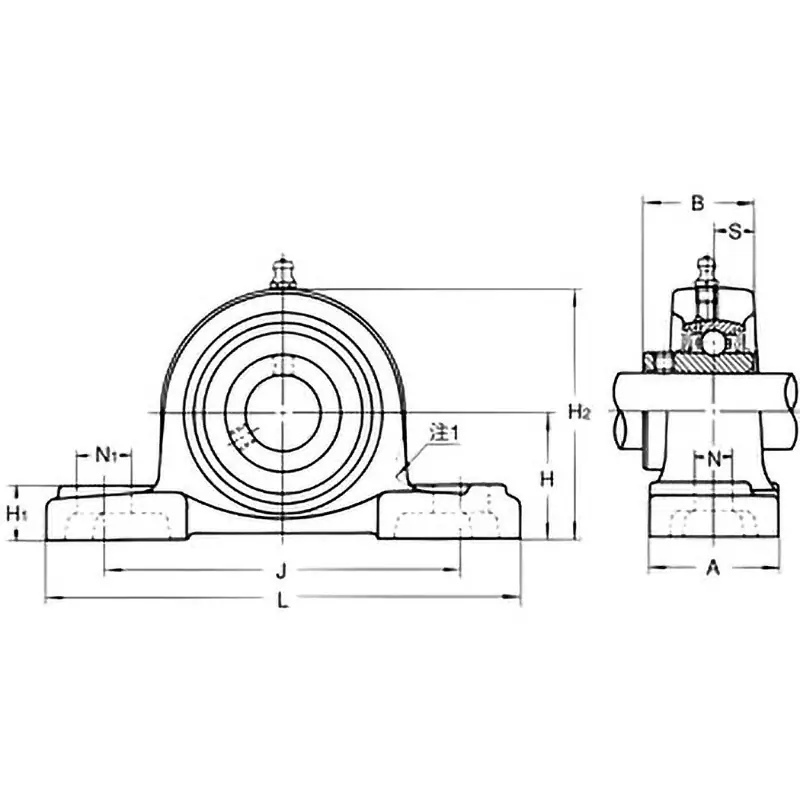

Dimension A (mm): 67
Dimension B (mm): 49.2
Dimension H (mm): 58.7
Dimension H1 (mm): 26
Dimension H2 (mm): 113
Dimension J (mm): 156
Dimension L (mm): 222
Dimension N (mm): 20
Dimension N1 (mm): 32
Dimension S (mm): 19
Axis diameter (mm): 40
Shape: Pillow Block Unit
Bearing designation number: UCX08
Mounting bolt designation: M16
Unit mass (kg): 3.5
Bearing box designation number: PX08
Basic dynamic load rating Cr (kN): 33
Basic static load rating Cor (kN): 20.5
RoHS directive (10 substances compliance): Compliant
Rational self-alignment
Completely dustproof due to a fully sealed bearing and bearing box
Only the bearing can be replaced due to complete compatibility between the bearing and bearing box
The outer surface of the bearing box is coated with melamine resin-based baked paint, providing excellent adhesion of the coating and maintaining a beautiful gloss for a long time
