NSK (Nippon Seiko Kabushiki Kaisha) Pillow Block Unit > UCPX09

Description

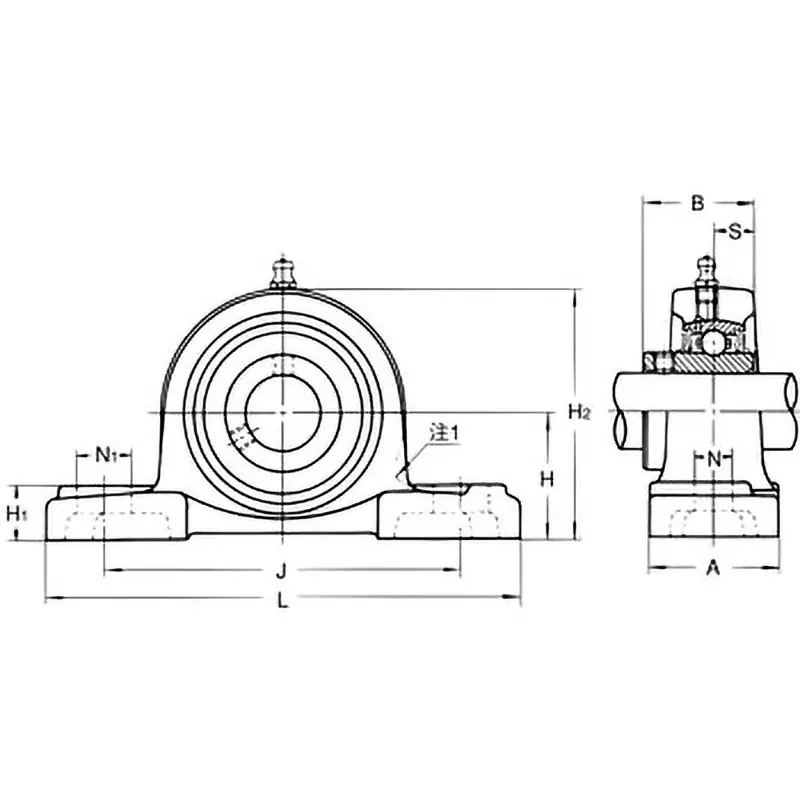

Dimension A (mm): 67
Dimension B (mm): 51.6
Dimension H (mm): 58.7
Dimension H1 (mm): 26
Dimension H2 (mm): 116
Dimension J (mm): 156
Dimension L (mm): 222
Dimension N (mm): 20
Dimension N1 (mm): 33
Dimension S (mm): 19
Axis diameter (mm): 45
Shape: Pillow block unit
Bearing designation number: UCX09
Mounting bolt designation: M16
Unit weight (kg): 3.5
Bearing housing designation number: PX09
Basic dynamic load rating Cr (kN): 35.5
Basic static load rating Cor (kN): 23.2
RoHS directive (10 substances compliance): Compliant

Rational self-aligning capability

Completely dust-proof due to the complete sealing device of the bearing and bearing housing

Possible to replace only the bearing due to the complete compatibility between the bearing and bearing housing

The outer surface of the bearing housing is coated with a melamine resin-based baked coating, which offers good adhesion of the coating and retains a beautiful gloss for a long time.
