NSK (Nippon Seiko Kabushiki Kaisha) Pillow Block Unit > UCPX13

Description

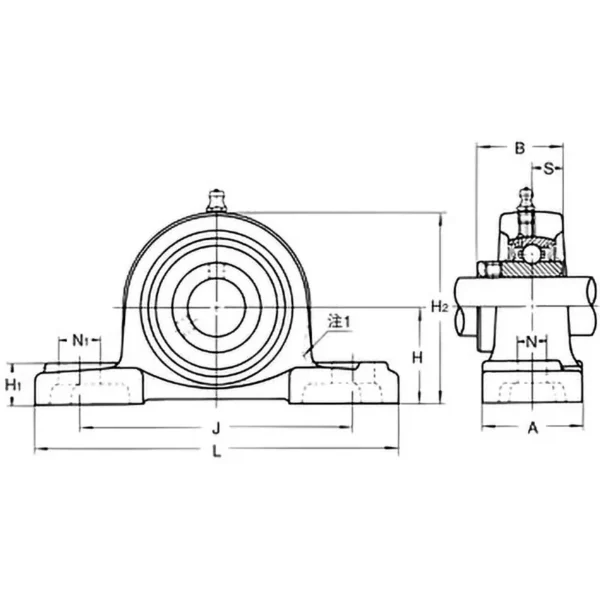

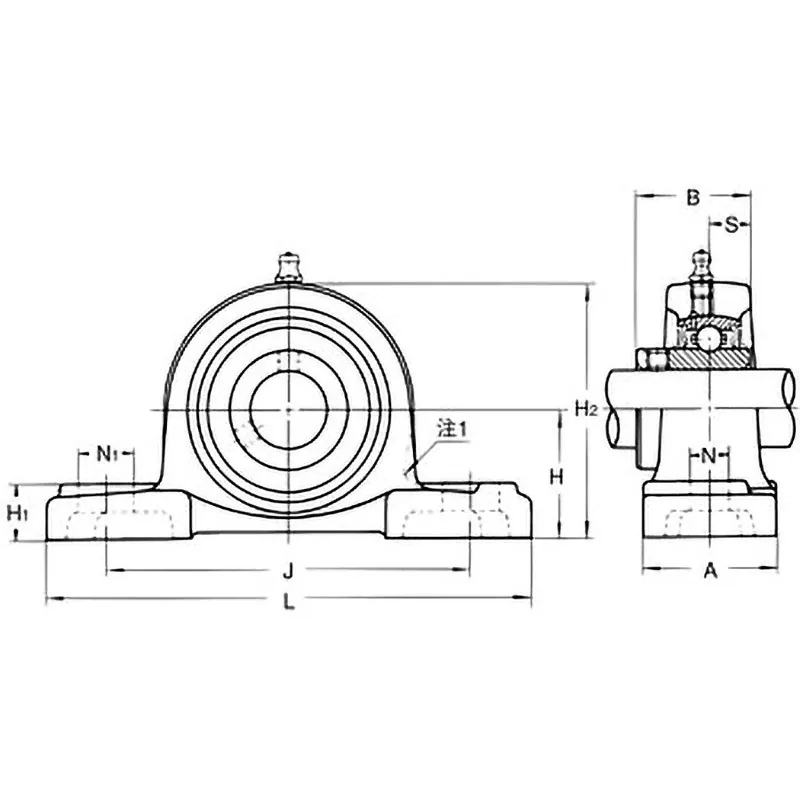

Dimension A (mm): 83
Dimension B (mm): 74.6
Dimension H (mm): 76.2
Dimension H1 (mm): 32
Dimension H2 (mm): 154
Dimension J (mm): 203
Dimension L (mm): 286
Dimension N (mm): 25
Dimension N1 (mm): 41
Dimension S (mm): 30.2
Axis Diameter (mm): 65
Shape: Pillow Shape Unit
Bearing Designation: UCX13
Mounting Bolt Designation: M20
Unit Mass (kg): 7.07
Bearing Housing Designation: PX13
Basic Dynamic Load Rating Cr (kN): 62
Basic Static Load Rating Cor (kN): 44
RoHS Directive (10 substances compliance): Compliant

Rational self-aligning capability

Completely dust-proof due to the complete sealing device of the bearing and bearing housing

Possible to replace only the bearing due to complete compatibility between the bearing and bearing housing

The paint on the outer surface of the bearing housing uses melamine resin-based baked paint, ensuring good adhesion of the coating and maintaining a beautiful gloss for a long time.
