Description

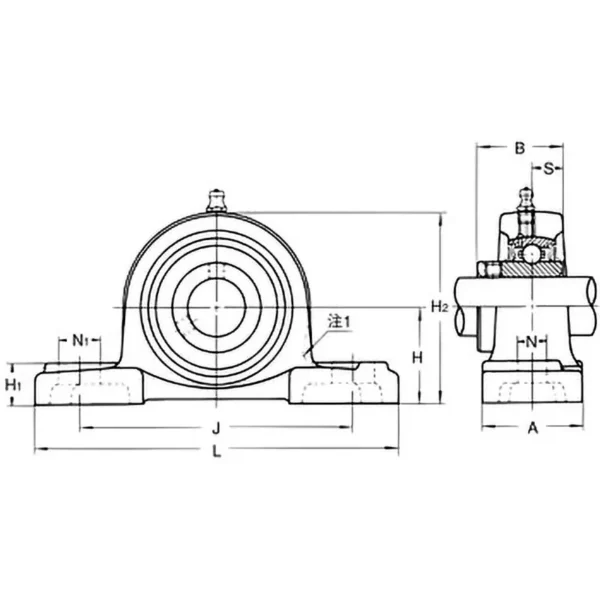

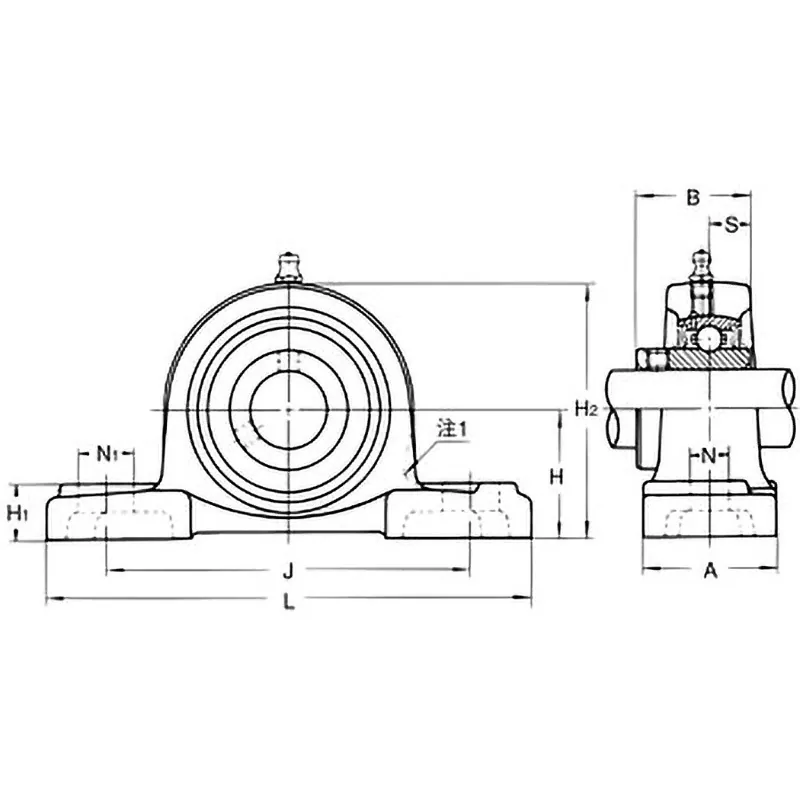

Dimension A (mm): 89
Dimension B (mm): 82.6
Dimension H (mm): 88.9
Dimension H1 (mm): 35
Dimension H2 (mm): 177
Dimension J (mm): 229
Dimension L (mm): 330
Dimension N (mm): 27
Dimension N1 (mm): 51
Dimension S (mm): 33.3
Shaft Diameter (mm): 75
Shape: Pillow Shape Unit
Bearing Designation: UCX15
Mounting Bolt Designation: M22
Unit Weight (kg): 11.4
Bearing Box Designation: PX15
Basic Dynamic Load Rating Cr (kN): 72.5
Basic Static Load Rating Cor (kN): 53
RoHS Directive (10 Substances Compliance): Compliant
Rational Self-Alignment
Complete dust protection due to the fully sealed device of the bearing and bearing box
Possible to replace only the bearing due to complete compatibility between the bearing and bearing box
The outer surface of the bearing box is coated with melamine resin-based baked paint, ensuring good adhesion of the coating and maintaining a beautiful gloss for a long time
