Description

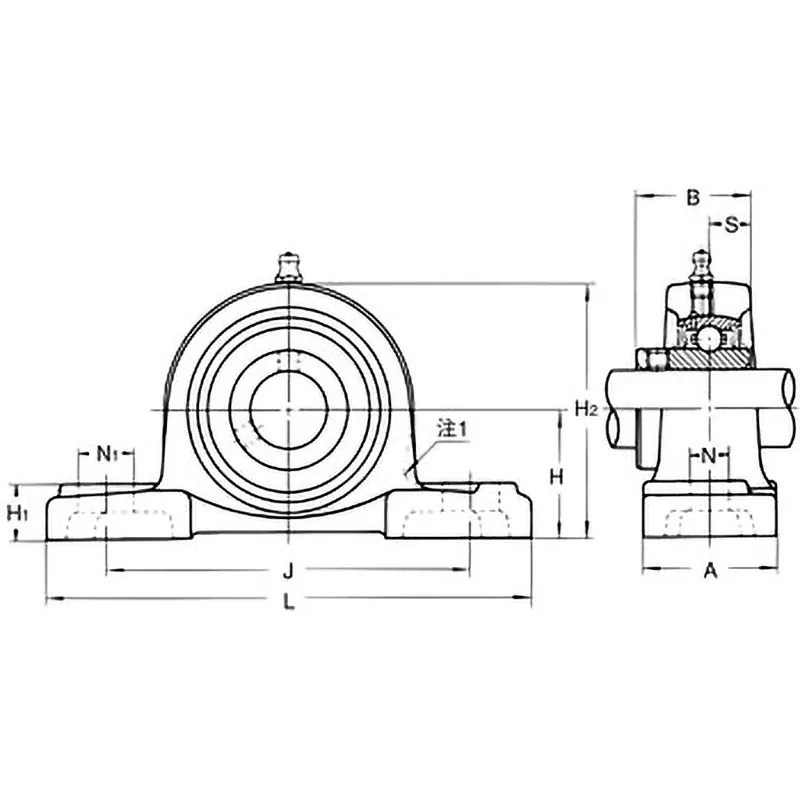

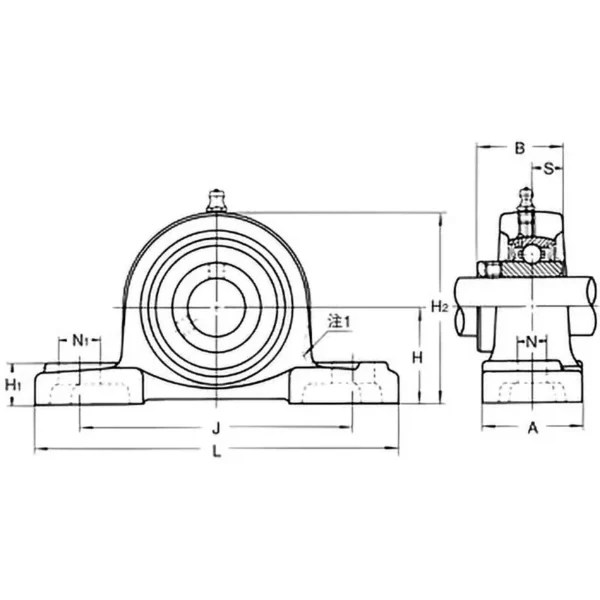

Dimension A (mm): 102
Dimension B (mm): 85.7
Dimension H (mm): 101.6
Dimension H1 (mm): 42
Dimension H2 (mm): 197
Dimension J (mm): 283
Dimension L (mm): 381
Dimension N (mm): 27
Dimension N1 (mm): 59
Dimension S (mm): 34.1
Axis diameter (mm): 80
Shape: Pillow shape unit
Bearing designation number: UCX16
Mounting bolt designation: M22
Unit mass (kg): 17.4
Bearing box designation number: PX16
Basic dynamic load rating Cr (kN): 83.5
Basic static load rating Cor (kN): 61.8
RoHS directive (10 substances compliance): Compliance
Rational automatic self-alignment
The complete sealing device of the bearing and bearing box provides full dust prevention
Due to the complete compatibility between the bearing and bearing box, it is possible to replace only the bearing
The painting on the outer surface of the bearing box uses melamine resin-based baked paint, ensuring good adhesion of the paint film and maintaining a beautiful gloss for a long time
