Description

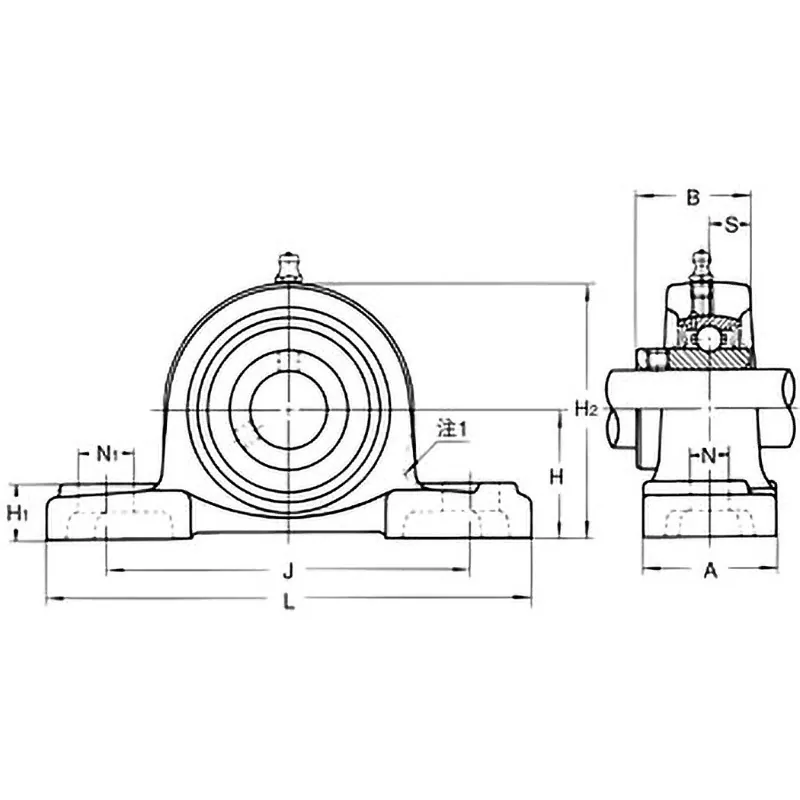

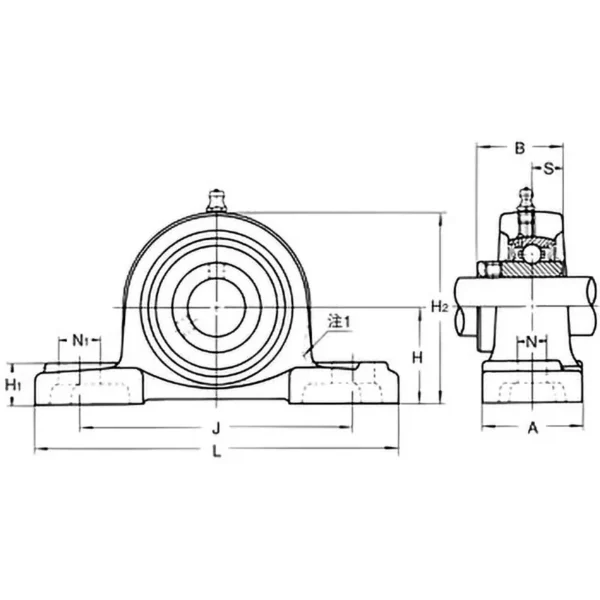

Dimension A (mm): 102
Dimension B (mm): 96
Dimension H (mm): 101.6
Dimension H1 (mm): 42
Dimension H2 (mm): 202
Dimension J (mm): 283
Dimension L (mm): 381
Dimension N (mm): 27
Dimension N1 (mm): 59
Dimension S (mm): 39.7
Shaft diameter (mm): 85
Shape: Pillow block unit
Bearing designation number: UCX17
Mounting bolt designation: M22
Unit mass (kg): 17.1
Bearing box designation number: PX17
Basic rated load Cr (kN): 95.5
Basic rated load Cor (kN): 71.4
RoHS directive (10 substances compliance): Compliance
Rational self-aligning capability
Completely dustproof due to the complete sealing device of the bearing and bearing box
Possible to replace only the bearing due to the complete compatibility between the bearing and bearing box
The outer surface of the bearing box is coated with a melamine resin-based baked paint, providing good adhesion of the paint film and maintaining a beautiful gloss for a long time.
