Description

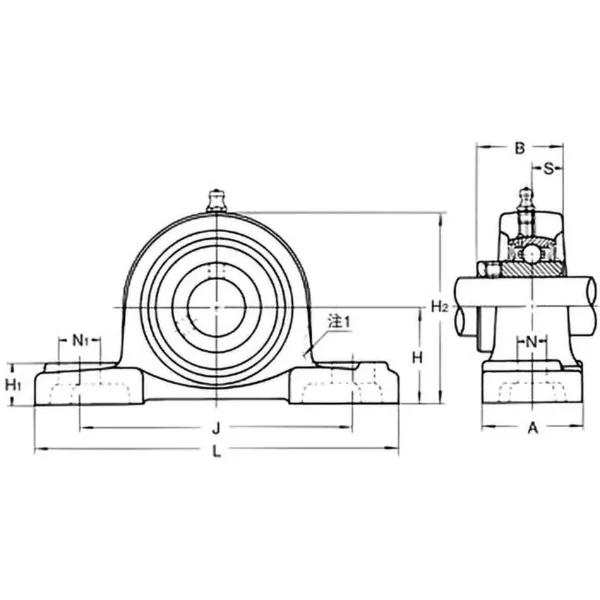

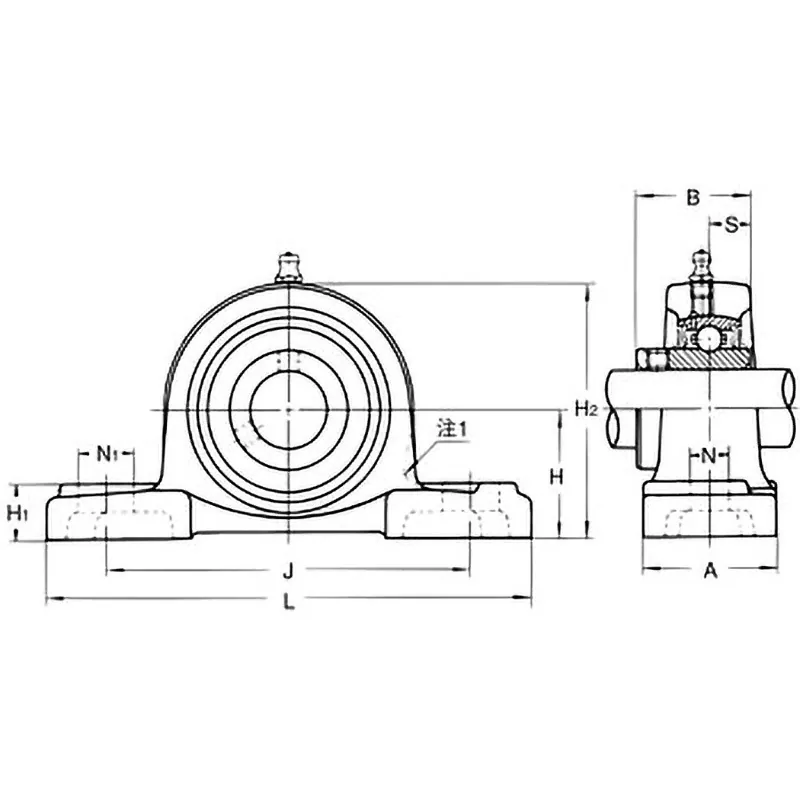

Dimension A (mm): 121
Dimension B (mm): 117.5
Dimension H (mm): 127
Dimension H1 (mm): 52
Dimension H2 (mm): 250
Dimension J (mm): 337
Dimension L (mm): 432
Dimension N (mm): 33
Dimension N1 (mm): 64
Dimension S (mm): 49.2
Axis Diameter (mm): 100
Shape: Pillow Type Unit
Bearing Designation: UCX20
Mounting Bolt Designation: M27
Unit Weight (kg): 33.0
Bearing Housing Designation: PX20
Basic Dynamic Load Rating Cr (kN): 134
Basic Static Load Rating Cor (kN): 104.7
RoHS Directive (Compliance with 10 Substances): Compliant
Rational Self-Alignment
Completely dust-proof due to the complete sealing device of the bearing and bearing housing
Only the bearing can be replaced due to the complete compatibility between the bearing and bearing housing
The outer surface of the bearing housing is coated with a melamine resin-based baked paint, which has good adhesion and maintains a beautiful gloss for a long time.
